Starrett LSS 653G

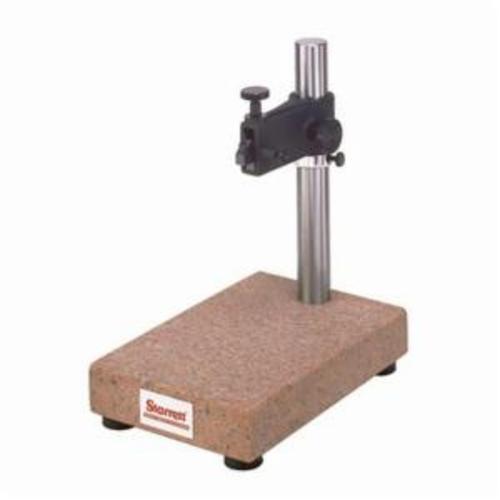

Starrett 653G Dial Comparator With Granite Base, Without Indicator, 12 in L x 8 in W x 2 in THK Base, 1-31/64 in Dia x 11-1/2 in L Rod
Invoice description:
Dial Comparator Stands N O. 653 653m Series C
Factory Order
Starrett Dial Comparator, 12 in L x 8 in W x 2 in THK Base, 1-31/64 in Rod Dia, 11-1/2 in Rod Length, 1-1/2 in Upright Post Dia, Crystal Pink
Features
- Ruggedly built for in-process and final inspection work
- Can be adjusted vertically and locked in any position
- A sliding ring with locking screw below the beam permits swinging the indicator to either side
- Ring also acts as a safety device, preventing the beam from accidentally dropping
- Includes a fine adjustment on the beam for final indicator setting
- Comparator with granite base, without indicator
- Base is finished to an overall tolerance of 0.0001 in
Specifications
Base Size12 in L x 8 in W x 2 in THK
ColorCrystal Pink
Rod Diameter1-31/64 in
Rod Length11-1/2 in
Upright Post Diameter1-1/2 in
Additional Information
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
