Starrett LSS 657-1

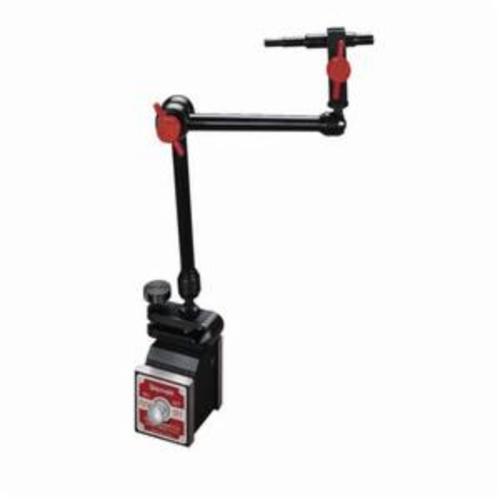

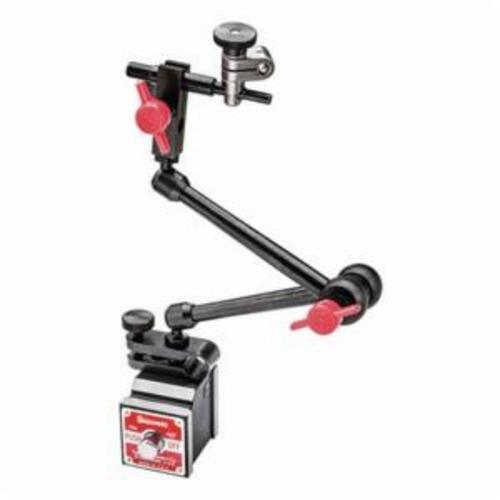

Starrett 657-1 Universal Magnetic Base Indicator Holder With Triple Jointed Arm and Fine Adjustment, 1-5/8 in L x 1-57/64 in W x 1-29/32 in H Base, 10-35/64 in OAL, 25/64 in Dia x 6-43/64 in L Rod

Invoice description: Test Indicators And Hold Er S No. 657 Series

UPC: 049659644364

UNSPSC: 27111800

Manufacturer PN: 657-1

^$762.20 EA

Factory Order

enlarge

Product Overview

Starrett Magnetic Base Indicator Holder, Universal, Series: 657, 1-5/8 in L x 1-57/64 in W x 1-29/32 in H Base, 10-35/64 in Overall Length, 25/64 in Rod Dia, 6-43/64 in Rod Length, 7/16 in Upright Post Dia, 5-23/32 in Upright Post Length

Features
Works with any indicator with a 3/8 in stem
Works with any indicator with a standard dovetail mount
Works with any indicator with a 1/4 in shank
Works with any indicator with a 3/16 in shank
Works with any indicator with a body clamp
The working area is within a hemisphere having a radius of approximately 12 in
The very sensitive fine-adjustment is located on the magnetic base to eliminate indicator deflection when it is being adjusted
Versatile indicator holder has three pivots available for positioning the indicator where needed
All pivots are controlled by one tightening knob
No 657 with 657P/ 657S/PT17850
