Starrett LSS 700MA

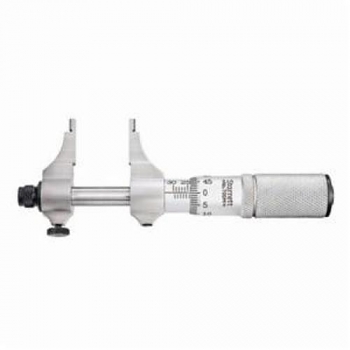

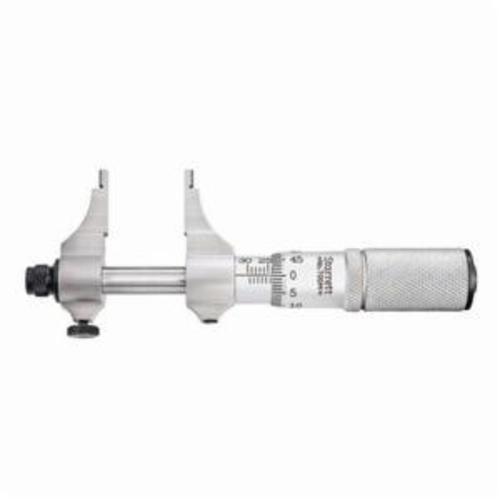

Starrett 700MA Mechanical Inside Micrometer Caliper With 2-Point Contact, 5 to 30 mm Measuring, Graduations 0.01 mm, Hardened Steel, Satin Chrome

UPC: 049659560633
UNSPSC: 41111622
Manufacturer PN: 700MA
$902.34 EA
Factory Order
QTY:


Starrett Inside Micrometer Caliper, Mechanical, Series: 700, 5 to 30 mm, +/-0.005 mm Accuracy, Graduations: 0.01 mm, 0.01 mm Resolution, Curved Anvil, Curve Spindle, Friction Thimble, Hardened Steel, Satin Chrome

  • Features

  • Lock screw
  • Caliper-type jaws permit quick inside measurements
  • Satin chrome reading surface is glare free and resists rust
  • Jaws are hardened and ground on a radius for accurate feel without cramping
  • Smooth friction thimble
  • Positive locking screw

Specifications

ApplicationFor measuring taper, out of round, bell mouth and barrel
Accuracy+/-0.005 mm
Anvil TypeCurved
FinishSatin Chrome
Graduations0.01 mm
MaterialHardened Steel
Measuring Range5 to 30 mm
Resolution0.01 mm
Series700
Spindle TypeCurve
Thimble TypeFriction
TypeMechanical
