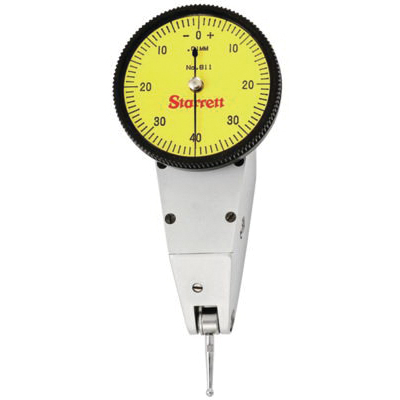

Starrett LSS 811-MPZ
Starrett 811-MPZ 811M Dial Test Indicator With Swivel Head, 0.8 mm Measuring, 0 to 40 to 0 Dial Reading, Graduations 0.01 mm, 1-3/8 in Dial, 5/8 in L Tip
Invoice description:
Dial Test Indicators Wit H Swivel Head No. 81
Factory Order
Starrett Dial Test Indicator, Series: 811M, 0.8 mm Measuring, 0 to 40 to 0 Dial Reading, Graduations: 0.01 mm, 1-3/8 in Dial, Yellow Dial, 5/8 in L Tip, 0.078 in Diameter Ball, Steel, Satin
Features
- Contact point reverses automatically, always maintaining clockwise hand rotation
- Contacts are frictionally adjustable and replaceable
- Contacts also available individually in steel, carbide and different sizes
- Swivel head feature allows positioning to suit your line of sight from horizontal to vertical and at any angle in between 90 deg
- Inch reading indicators are available with white, red, or black dials - metric indicators with yellow dials
- Smooth, jeweled movement
- Two positioning mounts work with dovetail test indicator accessories
Specifications
Ball Diameter0.078 in
Dial ColorYellow
Dial Reading0 to 40 to 0
Dial Size1-3/8 in
FinishSatin
Graduations0.01 mm
MaterialSteel
Measuring Range0.8 mm
Series811M
Tip Size5/8 in L
Additional Information
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
