Starrett LSS B811-1CZ

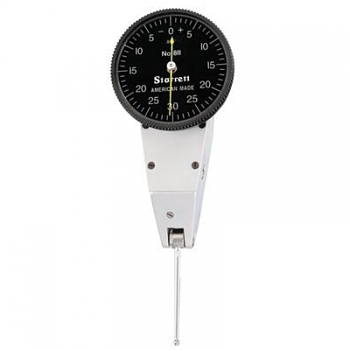

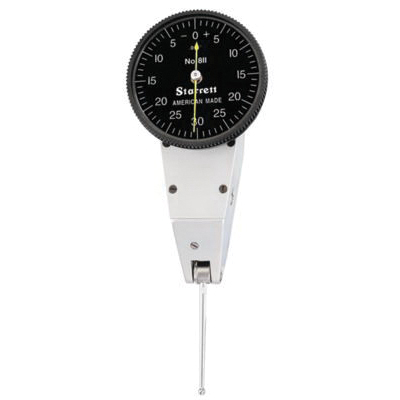

Starrett B811-1CZ Dial Test Indicator With Swivel Head, 0.06 in Measuring, 0 to 30 to 0 Dial Reading, Graduations 0.001 in, 1-3/8 in Dial, 1-5/16 in L Tip
Invoice description:
Dial Test Indicators Wit H Swivel Head No. 81
Factory Order
Starrett Dial Test Indicator, Series: 811 Series, 0.06 in Measuring, 0 to 30 to 0 Dial Reading, Graduations: 0.001 in, 1-3/8 in Dial, Black Dial, 1-5/16 in L Tip, 0.078 in Diameter Ball, Steel, Satin
Features
- Contact point reverses automatically, always maintaining clockwise hand rotation
- Contacts are frictionally adjustable and replaceable
- Contacts also available individually in steel, carbide and different sizes
- Swivel head feature allows positioning to suit your line of sight from horizontal to vertical and at any angle in between 90 deg
- Inch reading indicators are available with white, red, or black dials - metric indicators with yellow dials
- Smooth, jeweled movement
- Two positioning mounts work with dovetail test indicator accessories
- 100 G measuring force
- Large dial diameter for increased readability
Specifications
Ball Diameter0.078 in
Dial ColorBlack
Dial Reading0 to 30 to 0
Dial Size1-3/8 in
FinishSatin
Graduations0.001 in
MaterialSteel
Measuring Range0.06 in
Series811 Series
Tip Size1-5/16 in L
Additional Information
IncludesDovetail Body Clamp, Tool Post Holder, Swivel Post Snug With Dovetail Indicator Clamp, Snug and Rod Unit
Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of OriginUS
