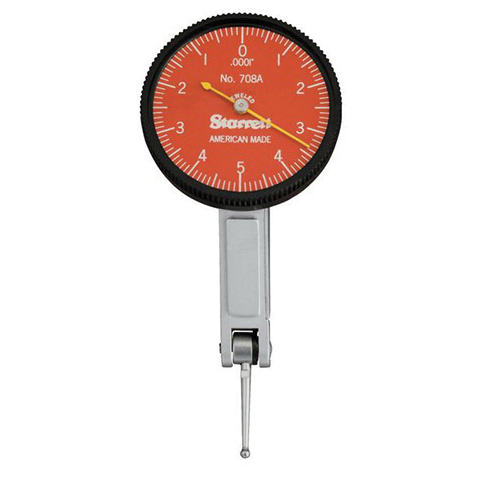

Starrett® LSS R708ACZ
Starrett® R708ACZ Balanced Standard Dial Test Indicator Set, 0.01 in Measuring, 0 to 5 to 0 Dial Reading, Graduations 0.0001 in, 1-3/8 in Dial, 13/16 in L Tip
Factory Order
Starrett® Dial Test Indicator Set, Balanced Standard, Series: 708 Series, 0.01 in Measuring, 0 to 5 to 0 Dial Reading, Graduations: 0.0001 in, 1-3/8 in Dial, Red Dial, 13/16 in L Tip, 0.078 in Diameter Ball, Steel, Satin
Features
- These precision test indicators offer an easy to read angled head and the flexibility of three dovetail mounts
- Three dovetail positioning mounts work with existing test indicator accessories
- Precision gear driven design with smooth, jeweled movement
- Contact point reverses automatically, always maintaining clockwise hand rotation
- Contacts are frictionally adjustable and replaceable
- Revolution count hand for easy reading
- Angled head for better reading position
- Narrow body for in reach ability
- Satin chrome finish for durability
- Carbide contact point
Specifications
Type Balanced Standard
Series 708 Series
Measuring Range 0.01 in
Dial Reading 0 to 5 to 0
Graduations 0.0001 in
Dial Size 1-3/8 in
Dial Color Red
Tip Size 13/16 in L
Ball Diameter 0.078 in
