Starrett LSS R709AZ

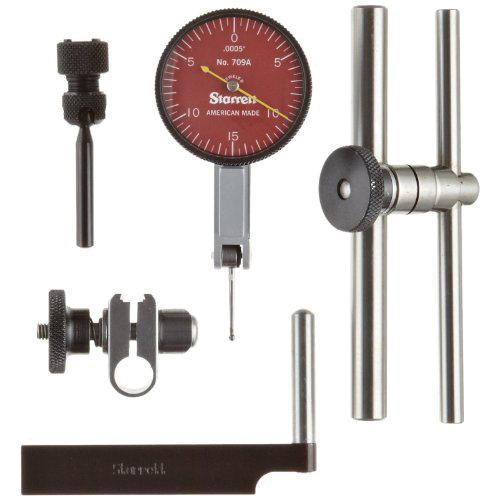

Starrett R709AZ Dial Test Indicator With Dovetail Mounts, 0.03 in Measuring, 0 to 15 to 0 Dial Reading, Graduations 0.0005 in, 1-3/8 in Dial, 13/16 in L Tip
Factory Order
Starrett Dial Test Indicator, Series: 709 Series, 0.03 in Measuring, 0 to 15 to 0 Dial Reading, Graduations: 0.0005 in, 1-3/8 in Dial, Red Dial, 13/16 in L Tip, 0.078 in Diameter Ball, Steel, Satin Chrome
Features
- These precision test indicators offer an easy to read angled head and the flexibility of three dovetail mounts
- Three dovetail positioning mounts work with existing test indicator accessories
- Precision gear driven design with smooth, jeweled movement
- Contact point reverses automatically, always maintaining clockwise hand rotation
- Contacts are frictionally adjustable and replaceable
- Revolution count hand for easy reading
- Inch reading indicators are available with easy-to-read, shaded white, red, or black dials - millimeter reading indicators with yellow dials
- Angled head for better reading position
- Narrow body for in reach ability
- 100 G measuring force
Specifications
Ball Diameter0.078 in
Dial ColorRed
Dial Reading0 to 15 to 0
Dial Size1-3/8 in
FinishSatin Chrome
Graduations0.0005 in
MaterialSteel
Measuring Range0.03 in
Series709 Series
Tip Size13/16 in L
