Starrett® LSS R811-5PZ

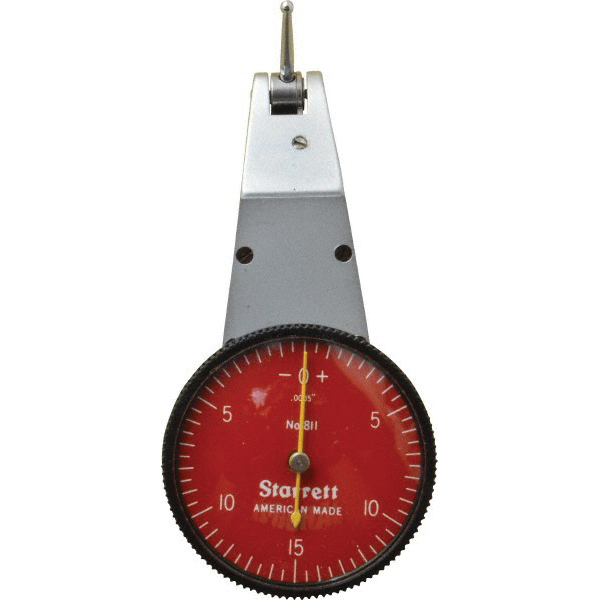

Starrett® R811-5PZ Dial Test Indicator With Swivel Head, 0.03 in Measuring, 0 to 15 to 0 Dial Reading, Graduations 0.0005 in, 1-3/8 in Dial, 5/8 in L Tip
Factory Order
Starrett® Dial Test Indicator, Series: 811 Series, 0.03 in Measuring, 0 to 15 to 0 Dial Reading, Graduations: 0.0005 in, 1-3/8 in Dial, Red Dial, 5/8 in L Tip, 0.078 in Diameter Ball, Steel, Satin
Features
- Contact point reverses automatically, always maintaining clockwise hand rotation
- Contacts are frictionally adjustable and replaceable
- Contacts also available individually in steel, carbide and different sizes
- Swivel head feature allows positioning to suit your line of sight from horizontal to vertical and at any angle in between 90 deg
- Inch reading indicators are available with white, red, or black dials - metric indicators with yellow dials
- Smooth, jeweled movement
- Two positioning mounts work with dovetail test indicator accessories
- 100 G measuring force
- Large dial diameter for increased readability
Specifications
Series 811 Series
Measuring Range 0.03 in
Dial Reading 0 to 15 to 0
Graduations 0.0005 in
Dial Size 1-3/8 in
Dial Color Red
Tip Size 5/8 in L
Ball Diameter 0.078 in
