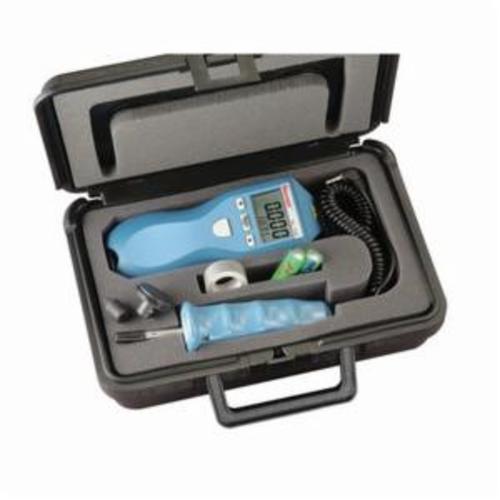

Starrett® LSS S7793Z

Starrett® S7793Z Handheld Pocket Tachometer, +/-0.05% Accuracy, 2 in to 25 ft, +/-70 deg Working, Laser, 5-Digit Alphanumeric LCD Display

UPC: 049659689303
UNSPSC: 41112802
Manufacturer PN: S7793Z
$1,205.50 EA
Factory Order
QTY:


Starrett® Pocket Tachometer, Handheld, +/-0.05% Accuracy, 2 in to 25 ft Working Distance, +/-70 deg Working, Laser Light Source, 5-Digit Alphanumeric LCD Display, Contact/Non-Contact Contact/Noncontact, Noncontact RPM Range: 5 to 200000 rpm, 6.92 in Length, 2.4 in Width, 1.6 in Depth, Plastic, Blue

  • Features

  • Digital, battery powered portable optical tachometer that can operate upto 25 ft from a reflective target using a laser light source
  • Its ergonomic design allows safe, direct line-of-sight viewing of both target and display at the same time, with a nonslip rubber surface for single hand operation
  • TTL compatible pulse output to trigger devices such as data collectors or stroboscopes
  • Accepts remote contact assembly and remote sensors optional
  • Powerful 32 function tachometer is programmable in both inch and metric rates
  • Auto ranging or fixed decimal user selectable
  • Tripod mounting bushing
  • On-target and low battery indicators
  • Rugged rubberized housing
  • NIST traceable certificate of calibration included

Specifications

ApplicationFor measuring rotational speed, linear speed, count and other measurements in mechanical or industrial engineering environments
Type Handheld
Accuracy +/-0.05%
Working Distance 2 in to 25 ft
Working Angle +/-70 deg
Light Source Laser
Display Type 5-Digit Alphanumeric LCD
Contact / Noncontact Contact/Non-Contact
Noncontact RPM Range 5 to 200000 rpm
Length 6.92 in
