Starrett® LSS S78MXTDZ

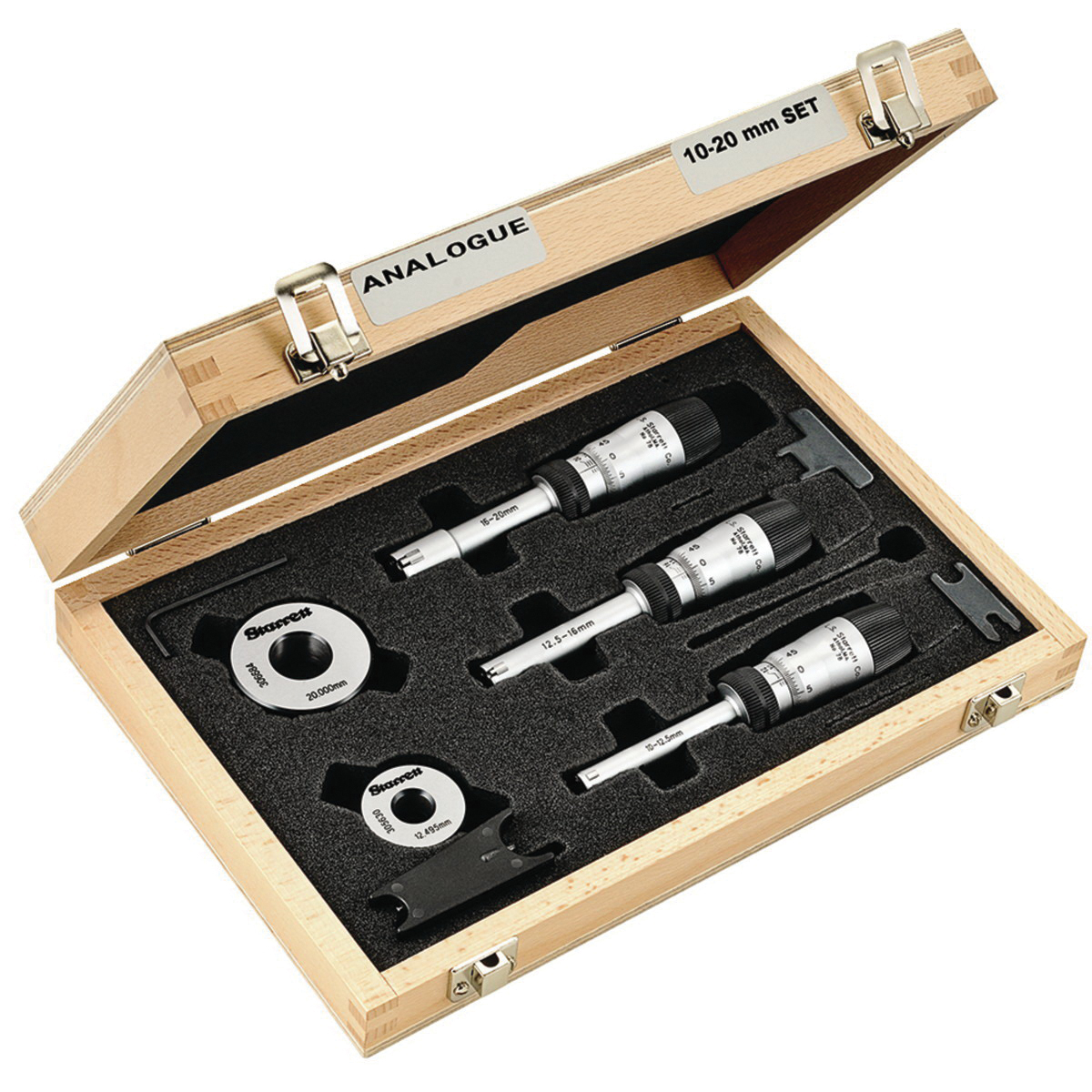

Starrett® S78MXTDZ 78MXT Global Series® Mechanical Bore Gage Set, 10 to 20 mm, Graduations: 0.005 mm, 58 to 62 mm D Probe, Tungsten Carbide
Starrett® Bore Gage Set, Mechanical, Series: 78MXT Global Series®, 10 to 20 mm, 0.004 mm Accuracy, Graduations: 0.005 mm, 0.005 mm Resolution, 58 to 62 mm Probe Depth, Tungsten Carbide
Features
- Wide measurement range without changing anvils
- Tungsten carbide measuring faces on all 3-point heads above 1/2 in (12.5 mm)
- Ratchet stop ensures consistent measurements
- Self-centering contacts for true readings
- Blind bore measuring capability above 1/2 in (12.5 mm) diameter
- Extensions available up to 6 in (150mm) for deep hole measuring
- 3 heads and 2 rings
- 3 point contact
Specifications
Type Mechanical
Series 78MXT Global Series®
Measuring Range 10 to 20 mm
Accuracy 0.004 mm
Graduations 0.005 mm
Resolution 0.005 mm
Probe Depth 58 to 62 mm
