Starrett® LSS T216XRL-4

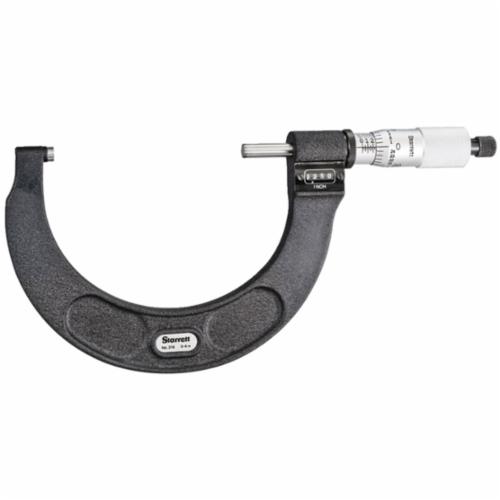

Starrett® T216XRL-4 Mechanical Digital Outside Micrometer, 3 to 4 in, Graduations: 0.0001 in, Carbide Tip, Black Frame/Satin Chrome Thimble
Starrett® Outside Micrometer, Mechanical Digital, Series: 216, 3 to 4 in, +/-0.0001 in Accuracy, Graduations: 0.0001 in, 0.0001 in Resolution, Flat Anvil, Flat Spindle, 1/4 in Spindle Dia, Ratchet Thimble, Carbide Tip, Black Frame/Satin Chrome Thimble, 8-5/8 in L x 43/64 in W
Features
- Clear, easily read numbers reduce errors
- Balanced frame design for comfortable and accurate measuring
- Gracefully designed tapered frame for use in narrow slots and tight places
- Starrett no-glare satin chrome finish on thimble and sleeve
- No-glare black finish on the frame
- Ring-type knurled lock nut for quick and sure locking
- Extremely hard and stable one-piece spindle
- Combination ratchet and speeder for uniform pressure and quicker adjustment
Specifications
Type Mechanical Digital
Series 216
Measuring Range 3 to 4 in
Accuracy +/-0.0001 in
Graduations 0.0001 in
Resolution 0.0001 in
Anvil Type Flat
Spindle Type Flat
Spindle Diameter 1/4 in
Thimble Type Ratchet
