Starrett LSS T463XRL

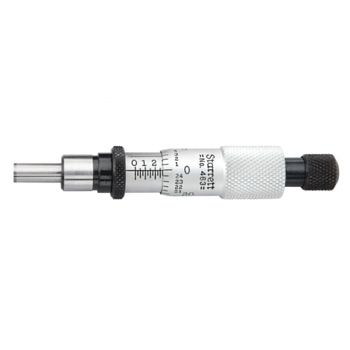

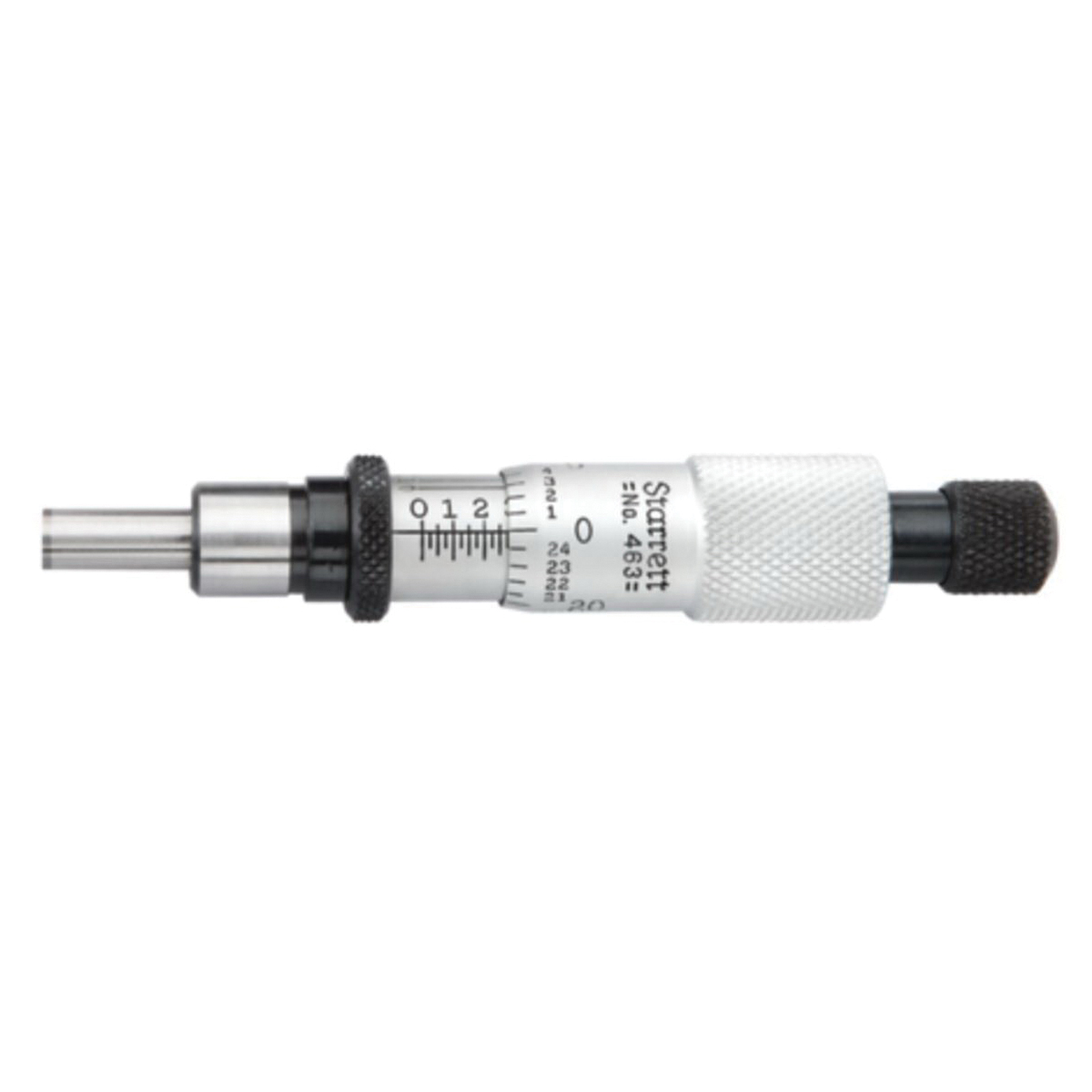

Starrett T463XRL Mechanical Micrometer Head, 0 to 1/2 in, Graduations: 0.001 in, Carbide Tip, Satin Chrome

UPC: 049659650525
UNSPSC: 41111601
Manufacturer PN: T463XRL
$220.22 EA
Factory Order
QTY:


Starrett Micrometer Head, Mechanical, Series: 463, 0 to 1/2 in, +/-0.0005 in Accuracy, Graduations: 0.001 in, 0.001 in Resolution, Flat Spindle, 3/8 in Spindle Dia, Ratchet Thimble, Carbide Tip, Satin Chrome, 3-3/8 in L x 17/32 in W

  • Features

  • Satin chrome finish, no-glare, resists rust on all reading surfaces
  • Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
  • Quick reading figures
  • Extremely hard and stable one-piece spindle
  • Micro-lapped measuring face for flatness and squareness
  • Quick and easy adjustment
  • Ring type knurled lock nut

Specifications

Accuracy+/-0.0005 in
Dimensions3-3/8 in L x 17/32 in W
FinishSatin Chrome
Graduations0.001 in
MaterialCarbide Tip
Measuring Range0 to 1/2 in
Resolution0.001 in
Series463
Spindle Diameter3/8 in
Spindle TypeFlat
Thimble TypeRatchet
TypeMechanical
