Starrett® LSS V1212MXRL

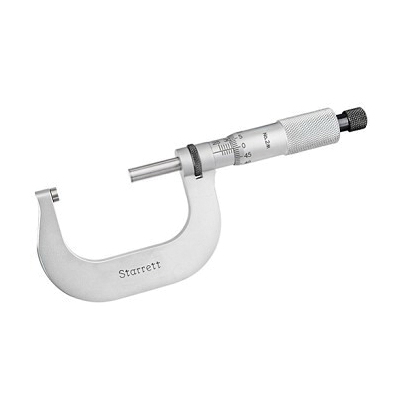

Starrett® V1212MXRL Mechanical Outside Micrometer, 25 to 50 mm, Graduations: 0.001 mm, Carbide Tip, Satin Chrome
Factory Order
Starrett® Outside Micrometer, Mechanical, Series: 1212M, 25 to 50 mm, +/-0.002 mm Accuracy, Graduations: 0.001 mm, 0.001 mm Resolution, Flat Anvil, Flat Spindle, 1/4 in Spindle Dia, Ratchet Thimble, Carbide Tip, Satin Chrome, 5-55/64 in L x 9/16 in W x 17/64 in H
Features
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Balanced frame and thimble design ensure easy handling and better readability
- Gracefully designed tapered frame for use in narrow slots and tight places
- Quick and easy adjustment
- Carbide measuring faces
- Satin finish stainless steel - no-glare - rust and stain resistant
- Ring-type knurled lock nut for quick and sure locking
- Combination ratchet and speeder for uniform pressure and quicker adjustment
- Rigid one-piece frame of drop forged steel
- Extremely hard and stable one-piece spindle
Specifications
Type Mechanical
Series 1212M
Measuring Range 25 to 50 mm
Accuracy +/-0.002 mm
Graduations 0.001 mm
Resolution 0.001 mm
Anvil Type Flat
Spindle Type Flat
Spindle Diameter 1/4 in
Thimble Type Ratchet
