Starrett® LSS V436.1MXRL-75

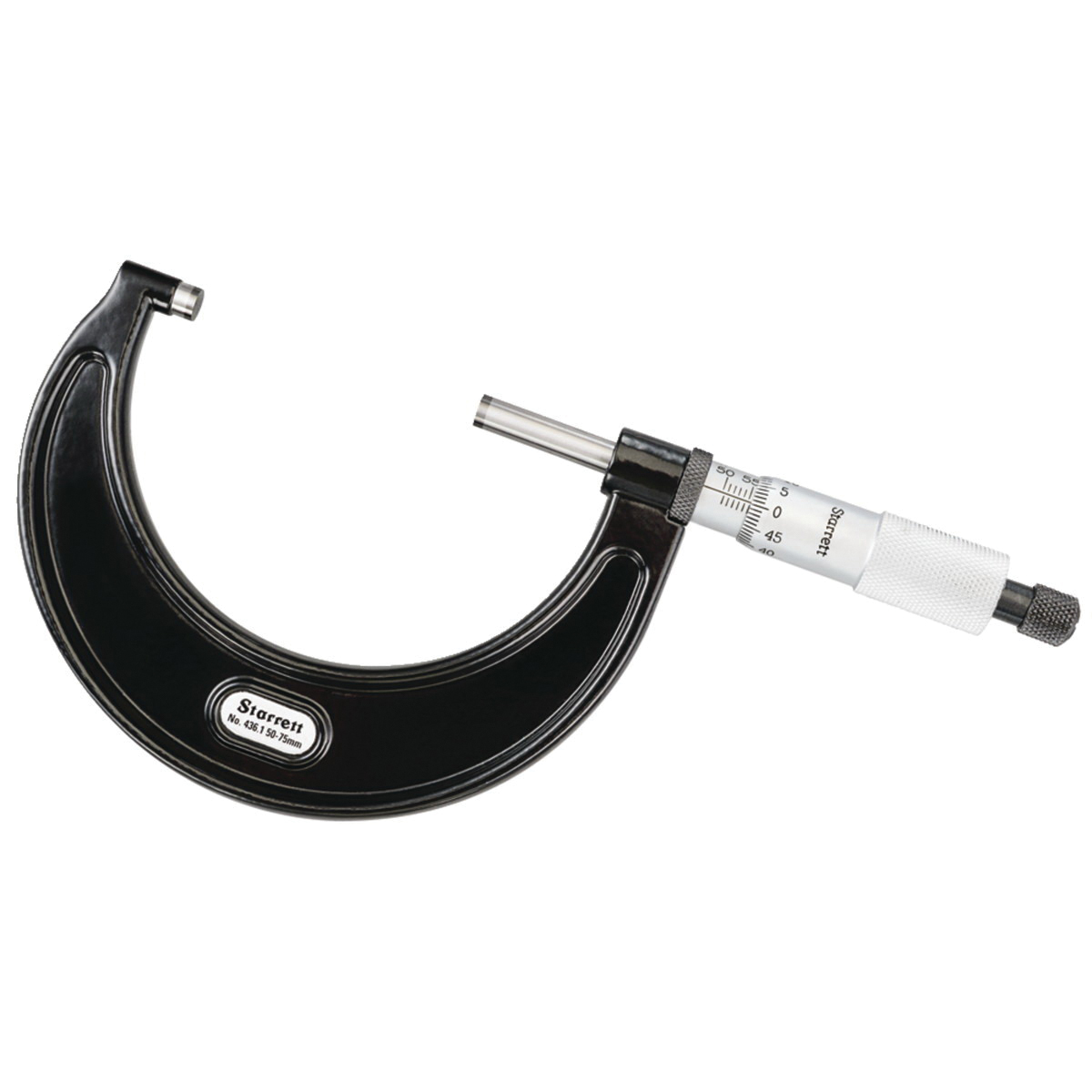

Starrett® V436.1MXRL-75 Mechanical Outside Micrometer, 50 to 75 mm, Graduations: 0.001 mm, Carbide Tip, Satin Chrome

UPC: 049659680577
UNSPSC: 41111601
Manufacturer PN: V436.1MXRL-75
$469.04 EA
Factory Order
QTY:


Starrett® Outside Micrometer, Mechanical, Series: 436.1M, 50 to 75 mm, +/-0.002 mm Accuracy, Graduations: 0.001 mm, 0.001 mm Resolution, Flat Anvil, Flat Spindle, 1/4 in Spindle Dia, Ratchet Thimble, Carbide Tip, Satin Chrome, 7-27/64 in L x 39/64 in W x 3-5/8 in H

  • Features

  • Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
  • Balanced frame and thimble design ensure easy handling and better readability
  • Satin chrome finish avoids glare and resists rust
  • Accurate, rugged and easy to use
  • Gracefully designed tapered frame for use in narrow slots and tight places
  • Quick and easy adjustment
  • Micro-lapped measuring faces
  • Extremely hard and stable one-piece spindle
  • The most popular precision micrometer used by skilled workmen worldwide

Specifications

Type Mechanical
Series 436.1M
Measuring Range 50 to 75 mm
Accuracy +/-0.002 mm
Graduations 0.001 mm
Resolution 0.001 mm
Anvil Type Flat
Spindle Type Flat
Spindle Diameter 1/4 in
Thimble Type Ratchet
