Milwaukee MILW 48-20-5010

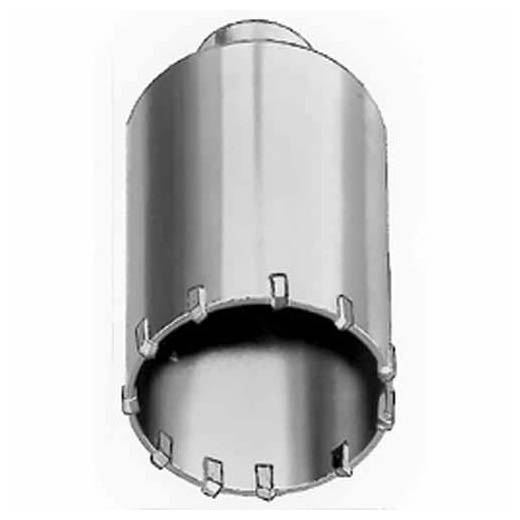

Milwaukee 48-20-5010 Thin Wall Core Bit, 1-1/8 in Drill - Fraction, 1.125 in Drill - Decimal Inch, Carbide

UPC: 045242105052
UNSPSC: 20121607
Manufacturer PN: 48-20-5010
$68.98 EA
Factory Order
QTY:


Milwaukee Thin Wall Core Bit, 1-1/8 in Drill - Fraction, 1.125 in Drill - Decimal Inch, 7 in Overall Length, 3-3/16 in Cutting Depth, 3-3/16 in Flute Length, 3/4 in Shank, SDS Plus Shank, Centering Point, Carbide Cutting Edge, Carbide, Silver, Applicable Materials: Block, Brick and Concrete

  • Features

  • Thin wall design
  • Core bits cuts a kerf only the inside core must be removed by the operator before deeper drilling can be accomplished
  • Thin wall design is meant for use with smaller hammers and newer concrete

Specifications

ApplicationFor use with 48-03-3545 8 in or 48-03-3551 12 in SDS Plus adapter shank and 48-95-6070 7-1/2 in extension
Applicable MaterialsBlock, Brick and Concrete
ColorSilver
Cutting Depth3-3/16 in
Cutting Edge MaterialCarbide
Drill Size - Decimal Inch1.125 in
Drill Size - Fraction1-1/8 in
Flute Length3-3/16 in
MaterialCarbide
Overall Length7 in
Point TypeCentering
Shank Size3/4 in
Shank TypeSDS Plus
