Dixon® DIXV 200-A-SS

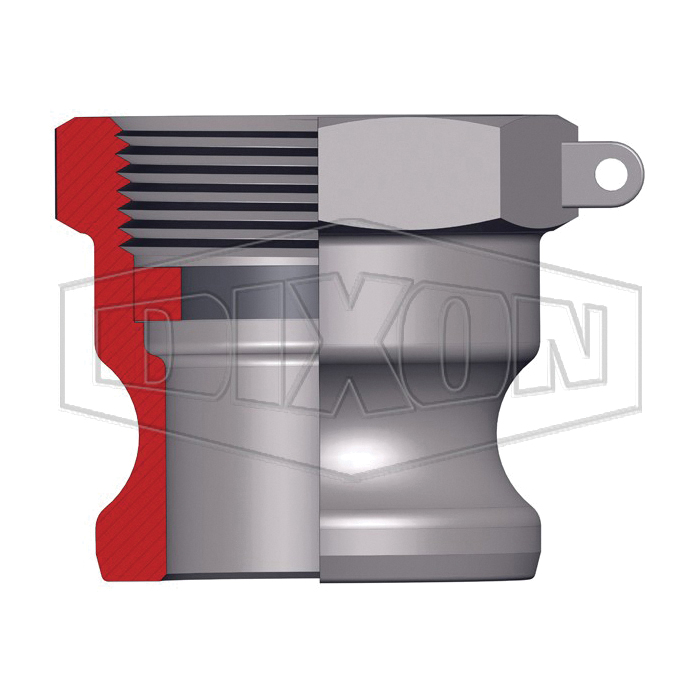

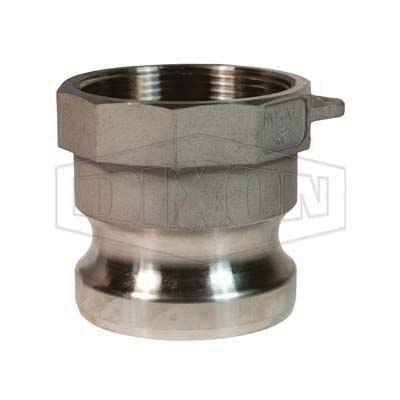

Dixon® 200-A-SS Boss-Lock™ Type A Cam and Groove Adapter, 2 in, Male Adapter x FNPT, 316 Stainless Steel

UNSPSC: 40141734
Manufacturer PN: 200-A-SS
$59.58 EA
In stock (1)
QTY:


Dixon® Cam and Groove Adapter, Type A, Series: Boss-Lock™, Adapter, 2 in Nominal, Male Adapter x FNPT, 2-11/16 in Hex, 2-19/32 in Length, 250 psi, 316 Stainless Steel

  • Features

  • Precision machined to rigid tolerances
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
  • 250 psi at ambient temperature 70 deg F pressure
  • Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
  • Do not use in connection with drinking water
  • Wash hands after handling

Specifications

ApplicationDesigned for use with liquids
Type Type A
Series Boss-Lock™
Fitting/Connector Ty Adapter
Nominal Size 2 in
End Style Male Adapter x FNPT
Hex Size 2-11/16 in
Length 2-19/32 in
Pressure Rating 250 psi
