Dixon DIXV MAH6

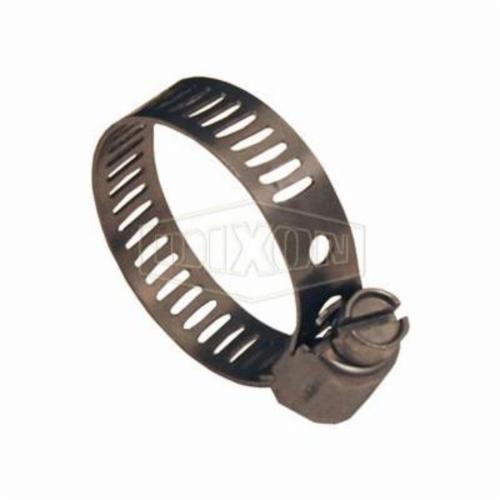

Dixon MAH6 Miniature Worm Gear Clamp, 28/64 to 50/64 in Clamp, Stainless Steel Band, Stainless Steel Bolt, Domestic

Invoice description: Clamp Micro Gear

UNSPSC: 31162906
Manufacturer PN: MAH6
$1.59 EA
Factory Order
Estimated to ship in 7 days
QTY:


Dixon Worm Gear Clamp, Miniature, Series: MAH, Clamping Range: 28/64 to 50/64 in, 5/16 in Width, 1/4 in Bolt, 15 in-lb, Grade:300, Stainless Steel Band, Stainless Steel Screw, Domestic

  • Features

  • 1/4 in slotted hex head screw design
  • SAE 300 series stainless steel
  • Maximum recommended torque is 15 in. lbs
  • Torque ratings correspond to the torque rating of the screw of the clamp and are not an indication of the working pressure of any hose assembly installed with this clamp
  • Wash hands after handling

Specifications

Band MaterialStainless Steel
Bolt MaterialStainless Steel Screw
Bolt Size1/4 in
Clamping Range28/64 to 50/64 in
Domestic/ImportDomestic
Grade300
SeriesMAH
Torque Rating15 in-lb
TypeMiniature
Width5/16 in

Additional Information

WarrantyLimited
Standards/ApprovalSAE J1508
Country of OriginUS
