Dormer UTD 0002711

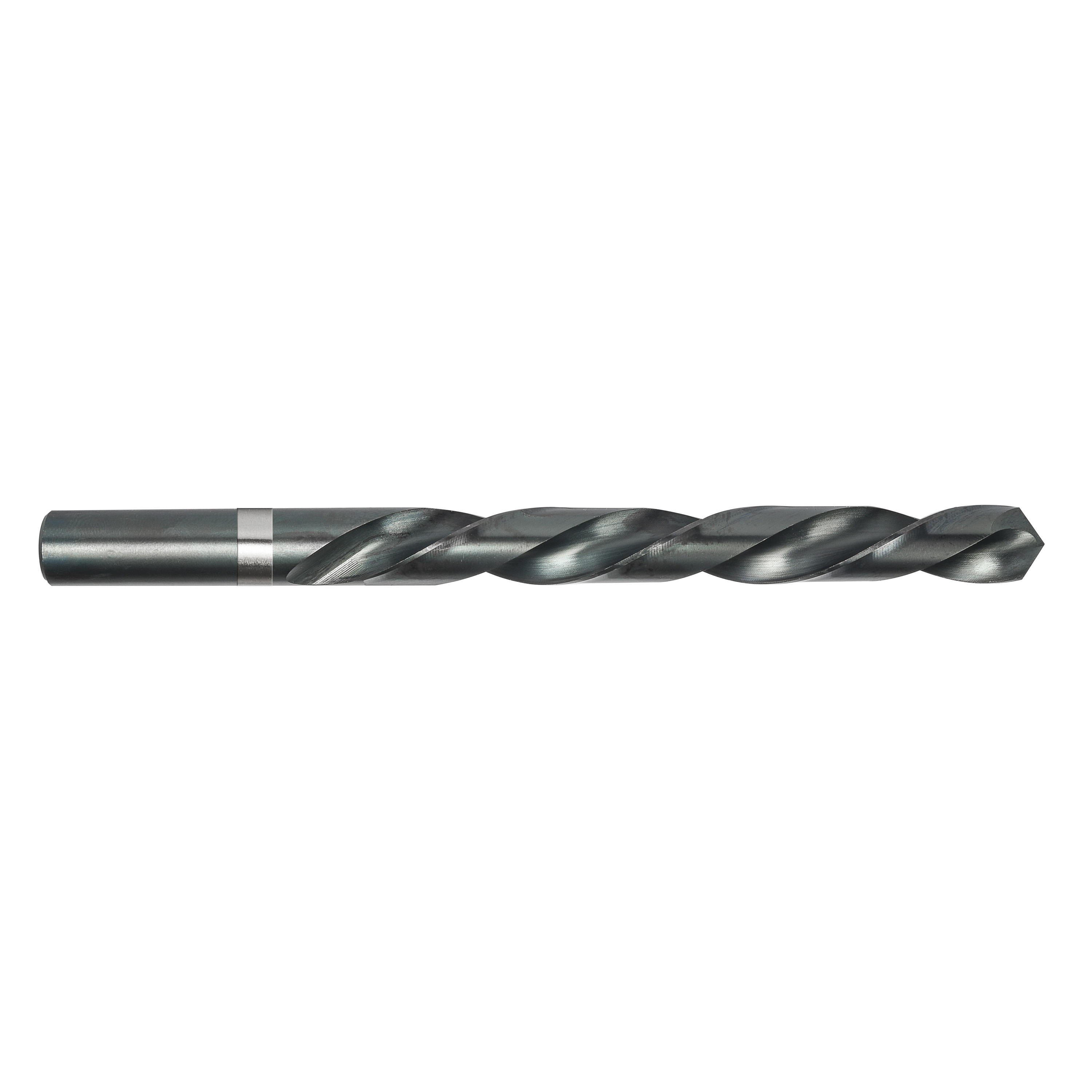

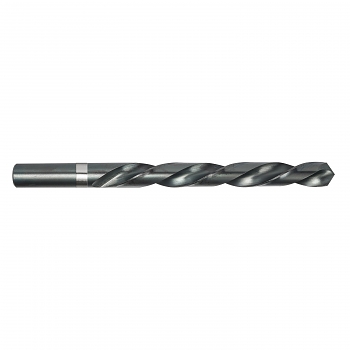

Dormer 5968037 A101 General Purpose Jobber Length Drill Bit, 1.4 mm Drill - Metric, 0.0551 in Drill - Decimal Inch, 118 deg Point, HSS, Steam Tempered
Factory Order
Dormer Jobber Length Drill Bit, General Purpose, Series: A101, Metric/Imperial, 1.4 mm Drill - Metric, 0.0551 in Drill - Decimal Inch, 40 mm Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 18 mm Flute Length, Straight Shank, 118 deg Point, Conventional Point, Left Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Steam Tempered, Dark Gray, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel and Lamellar Graphite
Features
- Left hand helix for use in machines where spindle is counter-clockwise and can be used to remove broken parts without damaging threaded holes
Specifications
Applicable MaterialsMagnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel and Lamellar Graphite
ColorDark Gray
Cutting Depth4XD
Cutting DirectionLeft Hand
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemMetric/Imperial
Drill Size - Decimal Inch0.0551 in
Drill Size - Metric1.4 mm
FinishSteam Tempered
Flute Length18 mm
Flute TypeSpiral
MaterialHSS
Number of Flutes2
Overall Length40 mm
Point Angle118 deg
Point TypeConventional
SeriesA101
Shank TypeStraight
Through Coolant (Yes/No)No
TypeGeneral Purpose
