Precision Twist Drill UTD 003340

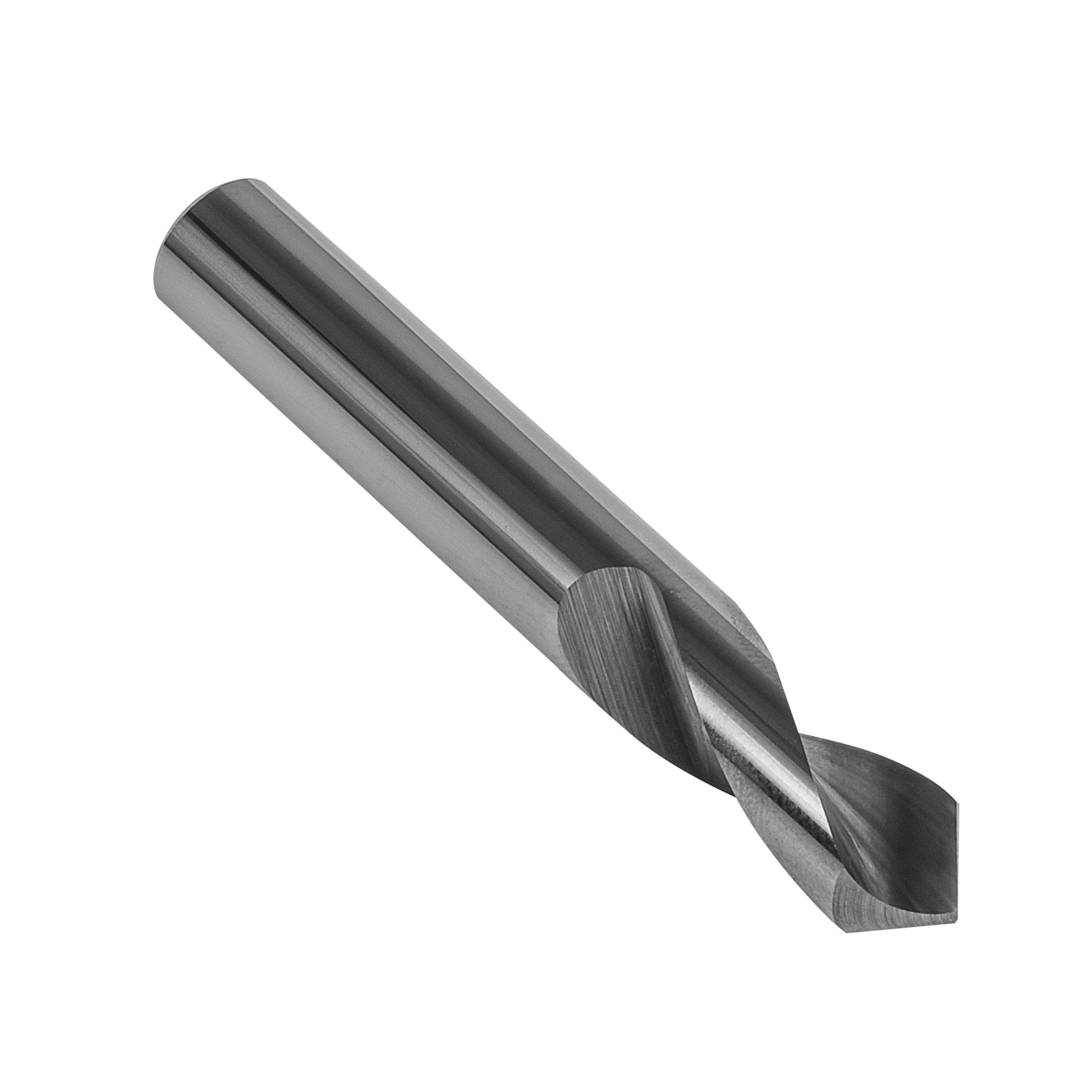

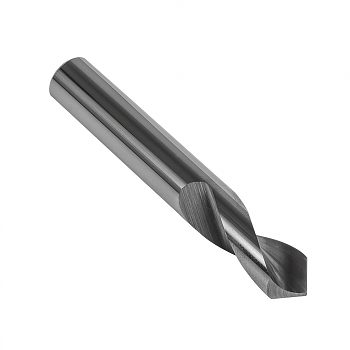

Precision Twist Drill 6002230 DS-90 General Purpose Standard Length Spotting Drill, 3/8 in Dia, 2-1/2 in OAL, Carbide, Bright
Invoice description:
Spot Drill 90 Deg Pt Utd 003340
Factory Order
Precision Twist Drill Spotting Drill, General Purpose Standard Length, Series: DS-90, 3/8 in Dia, 2-1/2 in Overall Length, 1XD Cutting Depth, 2 Flutes, Spiral Flute, 1 in Flute Length, 3/8 in Shank, Straight Shank, 90 deg Point, Conventional Point, Right Hand Cutting, HM Cutting Edge, Carbide, Bright, Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium and Synthetic Materials
Features
- Provides spot location or chamfer for follow up drilling operations
- Carbide materials are often characterised by high compression strength, high hardness and therefore high wear resistance, but also by limited flexural strength and toughness
Specifications
Applicable MaterialsSteel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium and Synthetic Materials
Cutting Depth1XD
Cutting DirectionRight Hand
Cutting Edge MaterialHM
Diameter3/8 in
FinishBright
Flute Length1 in
Flute TypeSpiral
MaterialCarbide
Number of Flutes2
Overall Length2-1/2 in
Point Angle90 deg
Point TypeConventional
SeriesDS-90
Shank Size3/8 in
Shank TypeStraight
TypeGeneral Purpose Standard Length
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
Country of OriginUS
