Dormer UTD 0045060

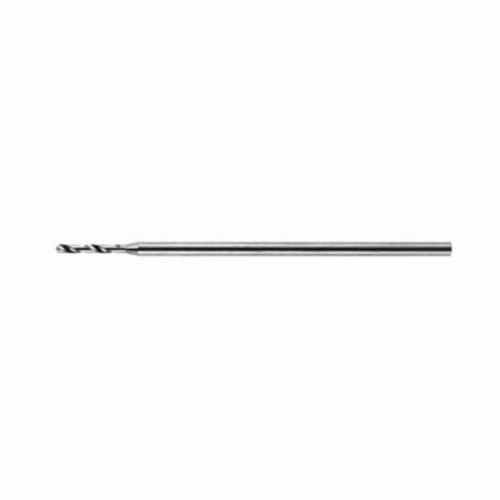

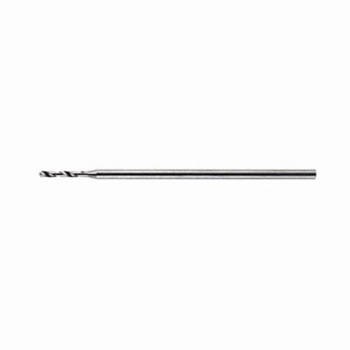

Dormer 0045060 A720 Type N Short Length Micro Drill, 0.38 mm Drill - Metric, 0.0149 in Drill - Decimal Inch, 1 mm Shank
Factory Order
Dormer Micro Drill, Type N Short Length, Series: A720, 0.38 mm Drill Size - Metric, 0.0149 in Drill Size - Decimal Inch, 25 mm Overall Length, 2.5xD Cutting Depth, Spiral Flute, 2.8 mm Flute Length, 1 mm Shank, Straight Shank, 118 deg Point, Conventional Point, Right Hand Cutting, HSS-E Cutting Edge, HSS-E, Bright, Applicable Materials: Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Nickel and Copper, Plain Carbon Steel and Titanium
Features
- Cobalt is harder than high speed steel and provides better wear resistance
- Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic
- Straight shanks are used for general purpose applications
- The shank is smaller than the drill bit diameter
- They are used with portable drills and drill presses on ferrous and non-ferrous materials
- Tapered web configuration
- No coolant channel
Specifications
ApplicationFor general drilling applications
Type Type N Short Length
Series A720
Drill Size - Metric 0.38 mm
Drill Size - Decimal 0.0149 in
Overall Length 25 mm
Cutting Depth 2.5xD
