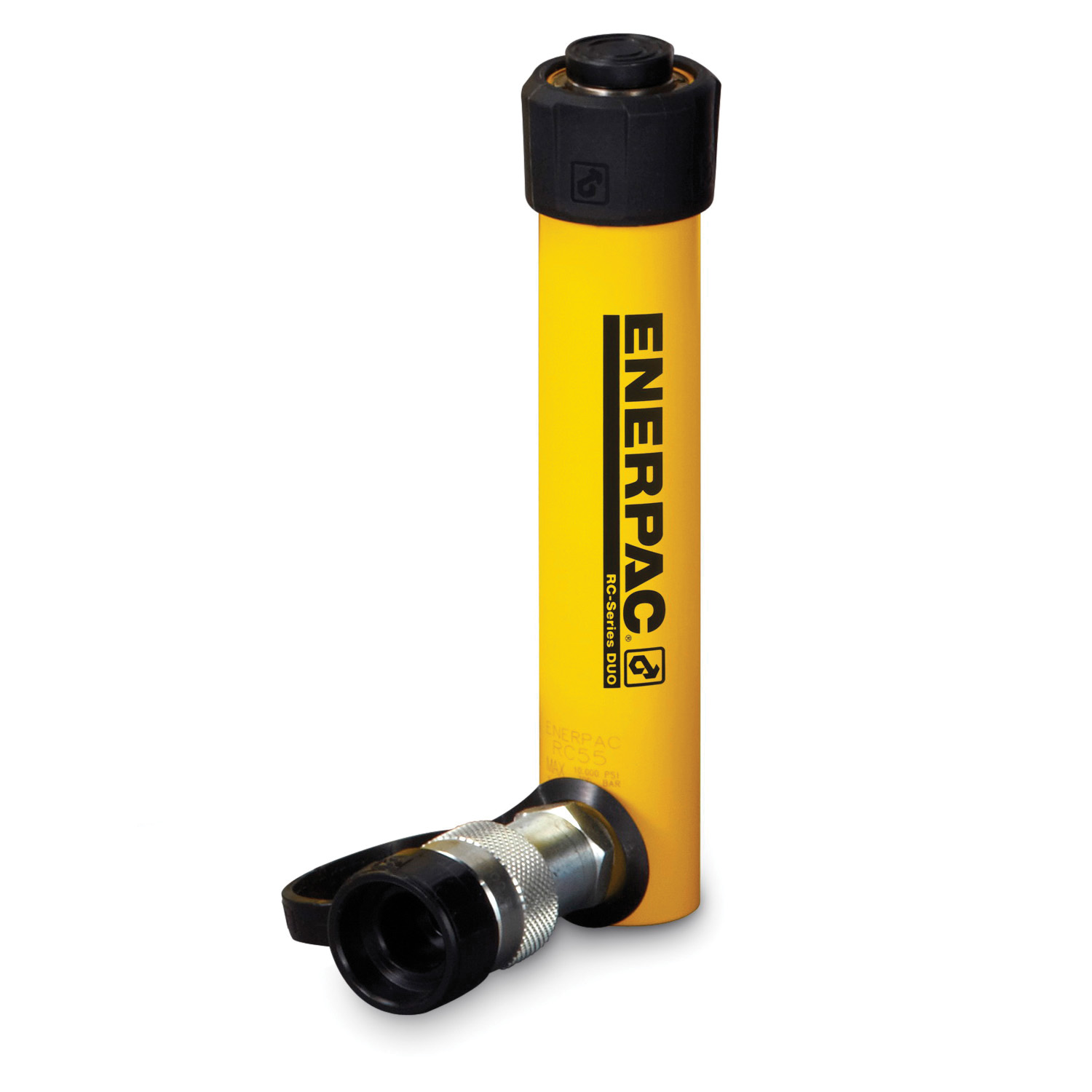

Enerpac ENE RC55

Enerpac RC-55 DUO General Purpose Single Acting Hydraulic Cylinder, 5 ton Capacity, 1.13 in Dia Bore, 5 in L Stroke, 8-1/2 in H Retract, 1 in Dia Rod, 700 bar

Invoice description: Cylinder 5 Ton 5" Stroke 10,000 Psi, Spring R

UPC: 662005300600

UNSPSC: 27121602

Manufacturer PN: RC-55

^$761.38 EA

In stock (1)

enlarge

Product Overview

Enerpac Hydraulic Cylinder, DUO General Purpose Single Acting, Series: RC, 5 ton, 1.13 in Dia Bore, 5 in Stroke, 8-1/2 in H Retract, Base Mount, 1 in Rod Dia, 700 bar, Alloy Steel Housing, Baked Enamel, 1-1/2 in OD

Features
Enerpac RC series single acting hydraulic cylinders set the industry standard for general purpose cylinders
Unique GR2 bearing design, reduces wear, extending life
Collar threads, plunger threads and base mounting holes enable easy fixturing
Designed for use in all positions
High strength alloy steel for durability
Redesigned cylinder thread protector for ease of use
Heavy duty, pretensioned spring improves retraction speed
Baked enamel finish for increased corrosion resistance
Plunger wiper reduces contamination, extending cylinder life

Specifications

ApplicationFor safe disposal of old gas cylinders with hydraulic punch set, safely releasing furnace bricks from a steel fixture, removing the wheel studs on a Caterpillar 777 dump truck and repairing the foundation of tilting silo with steel piers

Bore Size1.13 in Dia

Capacity5 ton

Dimensions1-1/2 in OD

FinishBaked Enamel

Housing MaterialAlloy Steel

Mounting TypeBase

Pressure Rating700 bar

Retract8-1/2 in H

Rod Diameter1 in

SeriesRC

Stroke Length5 in

TypeDUO General Purpose Single Acting
