Precision Twist Drill UTD 024640

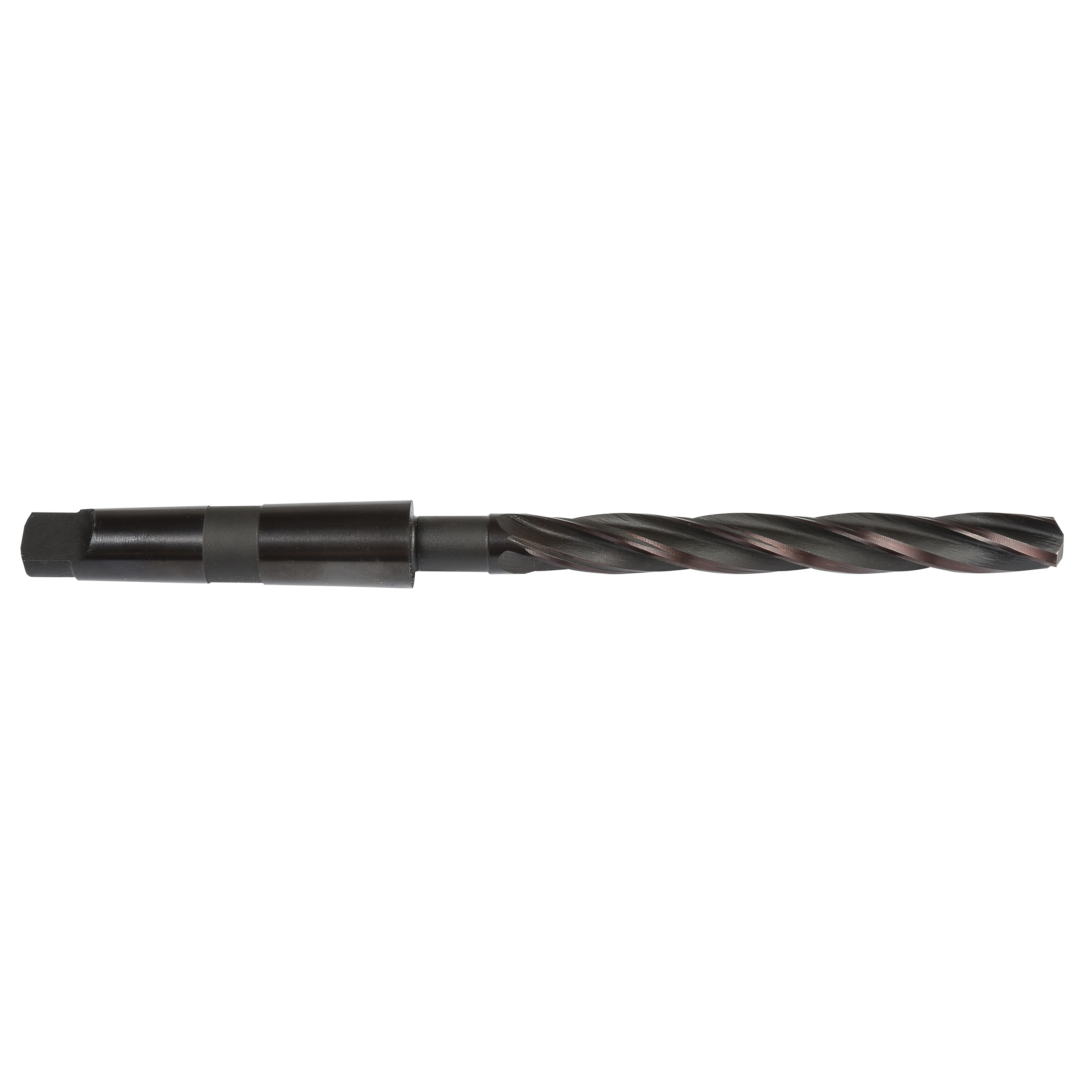

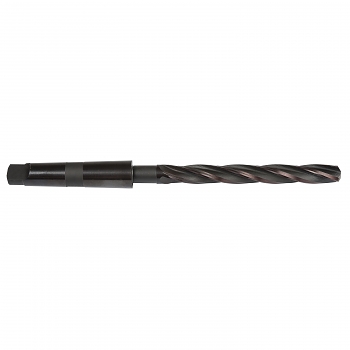

Precision Twist Drill 024640 T400 Long Length Core Drill, 1-5/8 in Drill - Fraction, 1.625 in Drill - Decimal Inch, HSS
Precision Twist Drill Core Drill, Long Length, Series: T400, 1-5/8 in Drill - Fraction, 1.625 in Drill - Decimal Inch, 17 in Overall Length, 10 in Cutting Depth, 4 Flutes, Spiral Flute, 10 in Flute Length, 1-5/8 in Shank, #2 Morse Taper Shank, 118 deg Point, Chamfer Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Steam Oxide, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel, Lamellar Graphite, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic and Martensitic
Features
- Core drill with taper shank for enlarging pre-drilled or cast holes in a wide range of materials
- High speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance
- Black oxide treatment adds lubricity and creates small pockets on the surface of the tool that act to hold coolant near the cutting edge
- Morse taper shank allows the tool to be inserted directly into the machine's spindle to facilitate high torque applications such as large cut diameters
- When run in a counterclockwise direction (right hand cut) spiral fluted tools evacuate chips up and out of the cut to reduce clogging
Specifications
Type Long Length
Series T400
Drill Size - Fractio 1-5/8 in
Drill Size - Decimal 1.625 in
Overall Length 17 in
Cutting Depth 10 in
Number of Flutes 4
