Dormer UTD 0567593

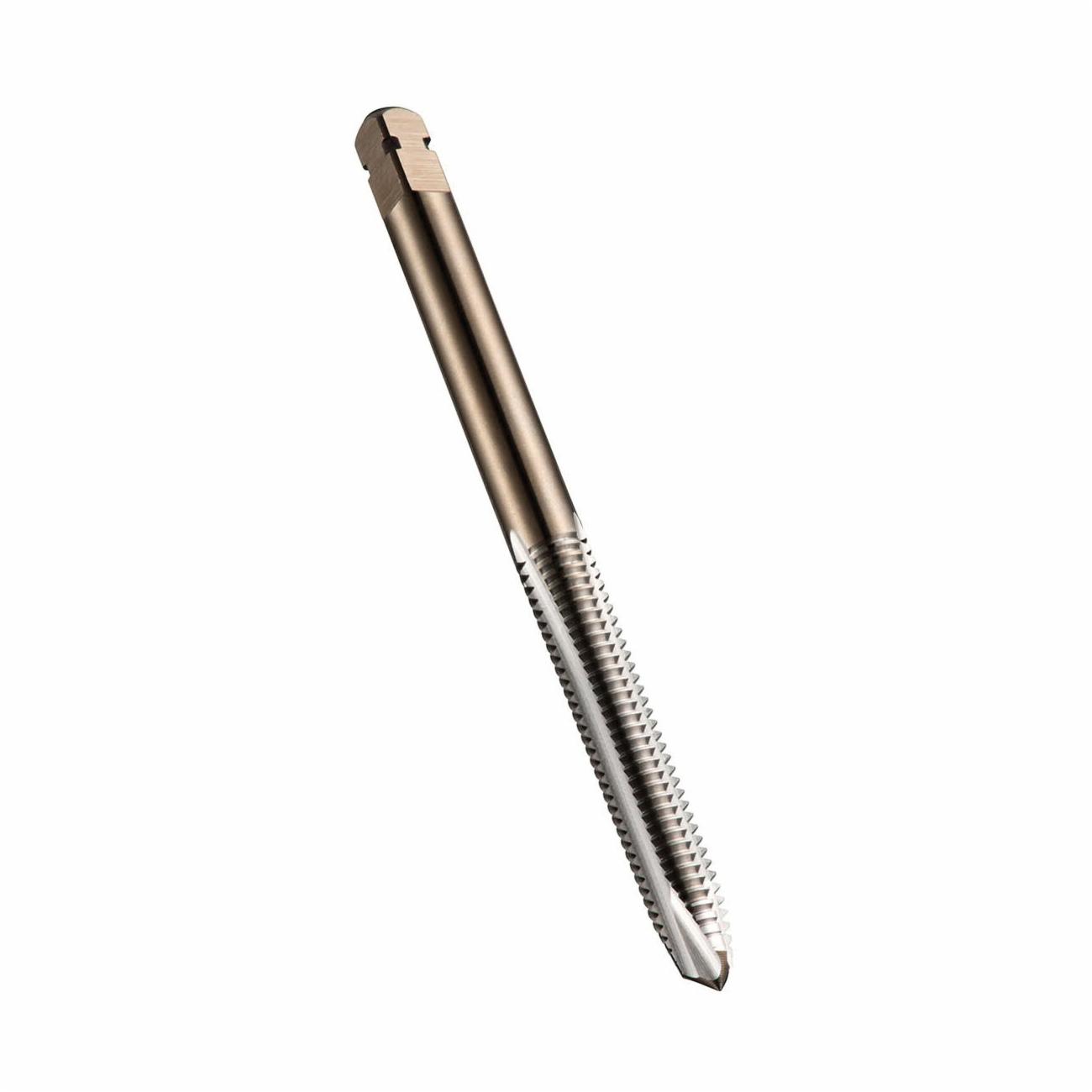

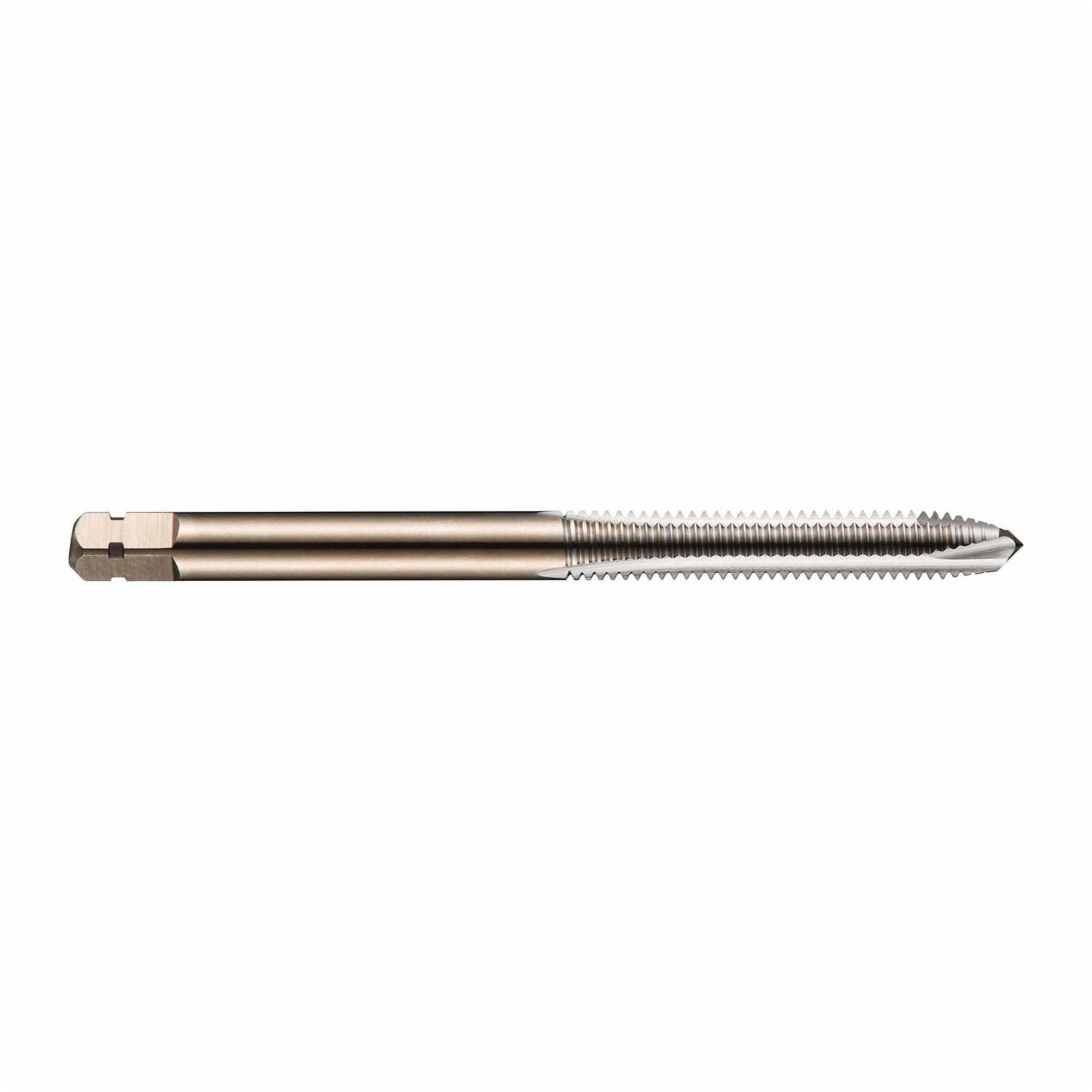

Dormer 5973785 E000 Spiral Point Machine Tap, Right Hand Cutting, M3.5x0.6 Thread, Plug Chamfer, 3 Flutes, Bright/Bronze Oxide, HSS-E
Dormer Spiral Point Machine Tap, Series: E000, Measurement System: Metric, Coarse, M3.5x0.6, Plug Chamfer, 3 Flutes, HSS-E, Bright/Bronze Oxide, Class of Fit: 6H, Right Hand Cutting, 16 mm Thread Length, 50 mm Overall Length, 3.55 mm Shank Dia, Steel, Cast Iron, Titanium, Copper, Aluminum Magnesium and Synthetic Materials Material Application
Features
- Premium substrate for through hole tapping in tough or abrasive materials
- Bronze oxide body and shank reduces rust and corrosion
- Bright finish flutes improve chip flow in soft and non-ferrous materials
Specifications
ApplicationFor through hole and multi applications
Chamfer TypePlug
Class of Fit6H
Cutting DirectionRight Hand
Finish/CoatingBright/Bronze Oxide
MaterialHSS-E
Material ApplicationSteel, Cast Iron, Titanium, Copper, Aluminum Magnesium and Synthetic Materials
Measurement SystemMetric
Number of Flutes3
Overall Length50 mm
SeriesE000
Shank Diameter3.55 mm
Thread Length16 mm
Thread SizeM3.5x0.6
Thread StandardCoarse
