Dormer UTD 0567777

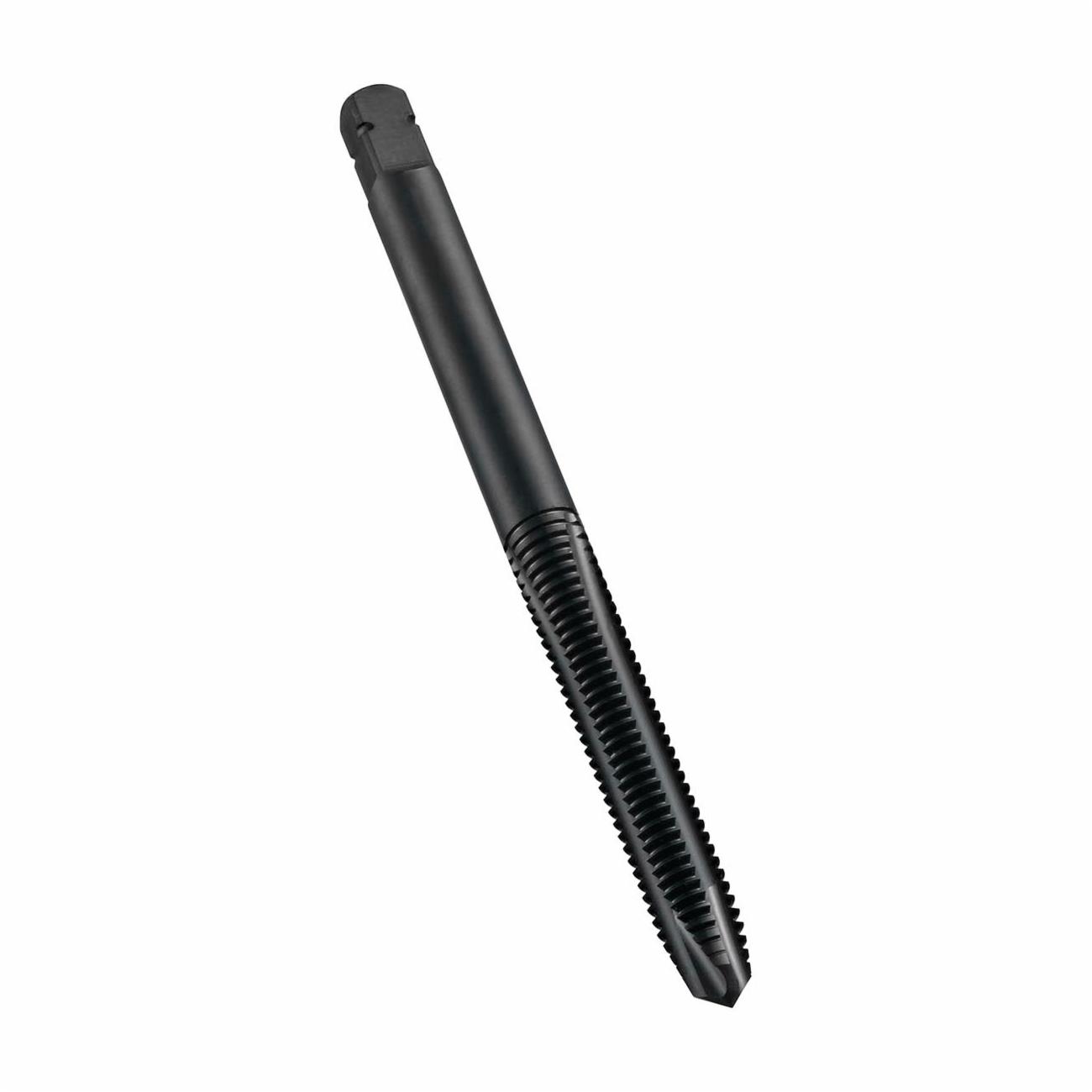

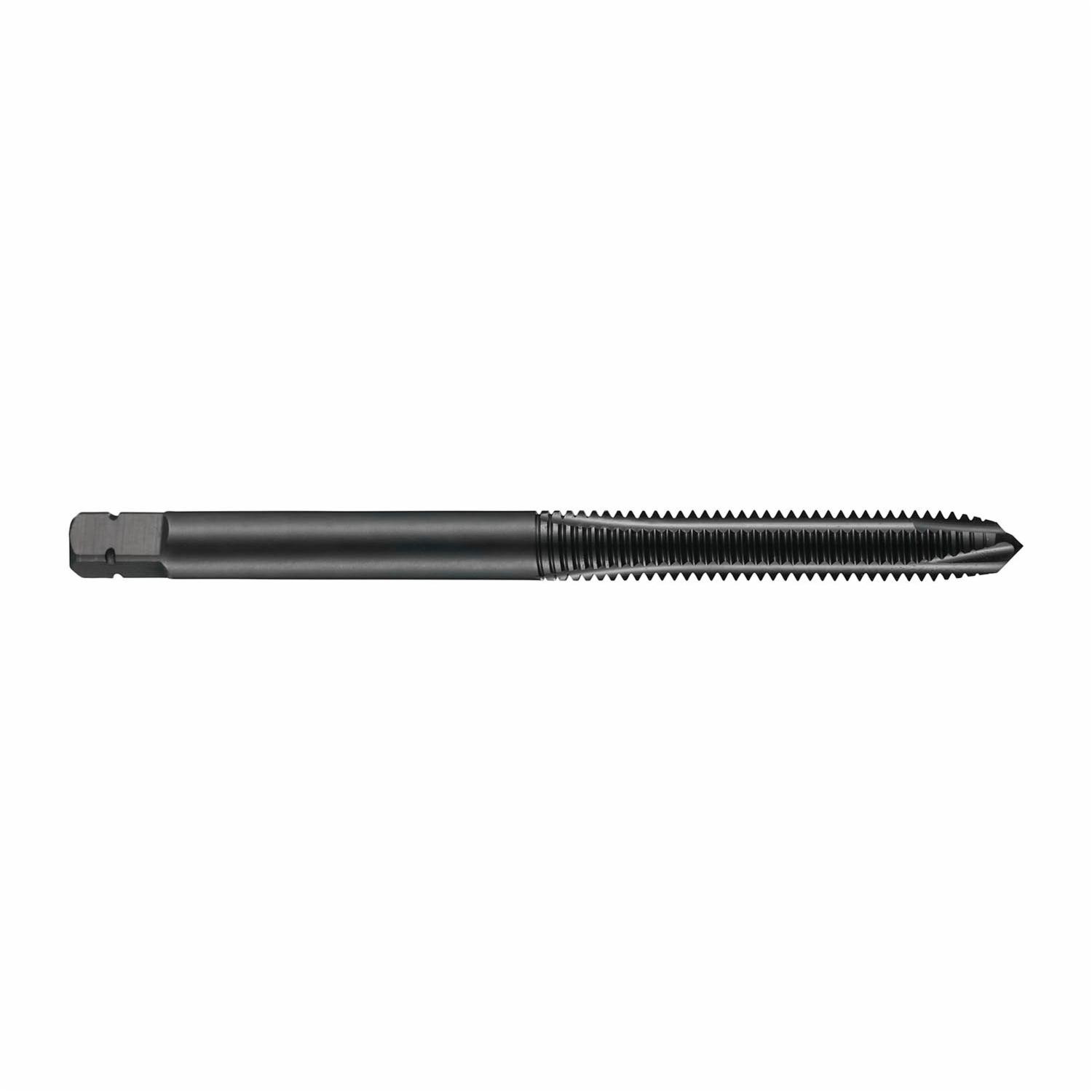

Dormer 0567777 E001 Dormer Spiral Point Tap, Right Hand Cutting, M8x1.25 Thread, D5 Thread Limit, Plug Chamfer, 3 Flutes, Steam Oxide, HSS-E

UNSPSC: 23241615
Manufacturer PN: 0567777
$22.80 EA
Factory Order
QTY:


Dormer Dormer Spiral Point Tap, Series: 1655H, Measurement System: Metric, Coarse, M8x1.25, Plug Chamfer, 3 Flutes, HSS-E, Steam Oxide, Class of Fit: 6H, Right Hand Cutting, 16 mm Thread Length, 72 mm Overall Length, 8 mm Shank Dia, Steel, Stainless Steel and Cast Iron Material Application, D5 Thread Limit

  • Features

  • Premium substrate with steam oxide surface treatment reduces wear and prevents chip welding in abrasive or harder ferrous materials

Specifications

ApplicationFor multi applications
Series E001
Measurement System Metric
Thread Standard Coarse
Thread Size M8x1.25
Chamfer Type Plug
Number of Flutes 3
Material HSS-E
Finish/Coating Steam Oxide
