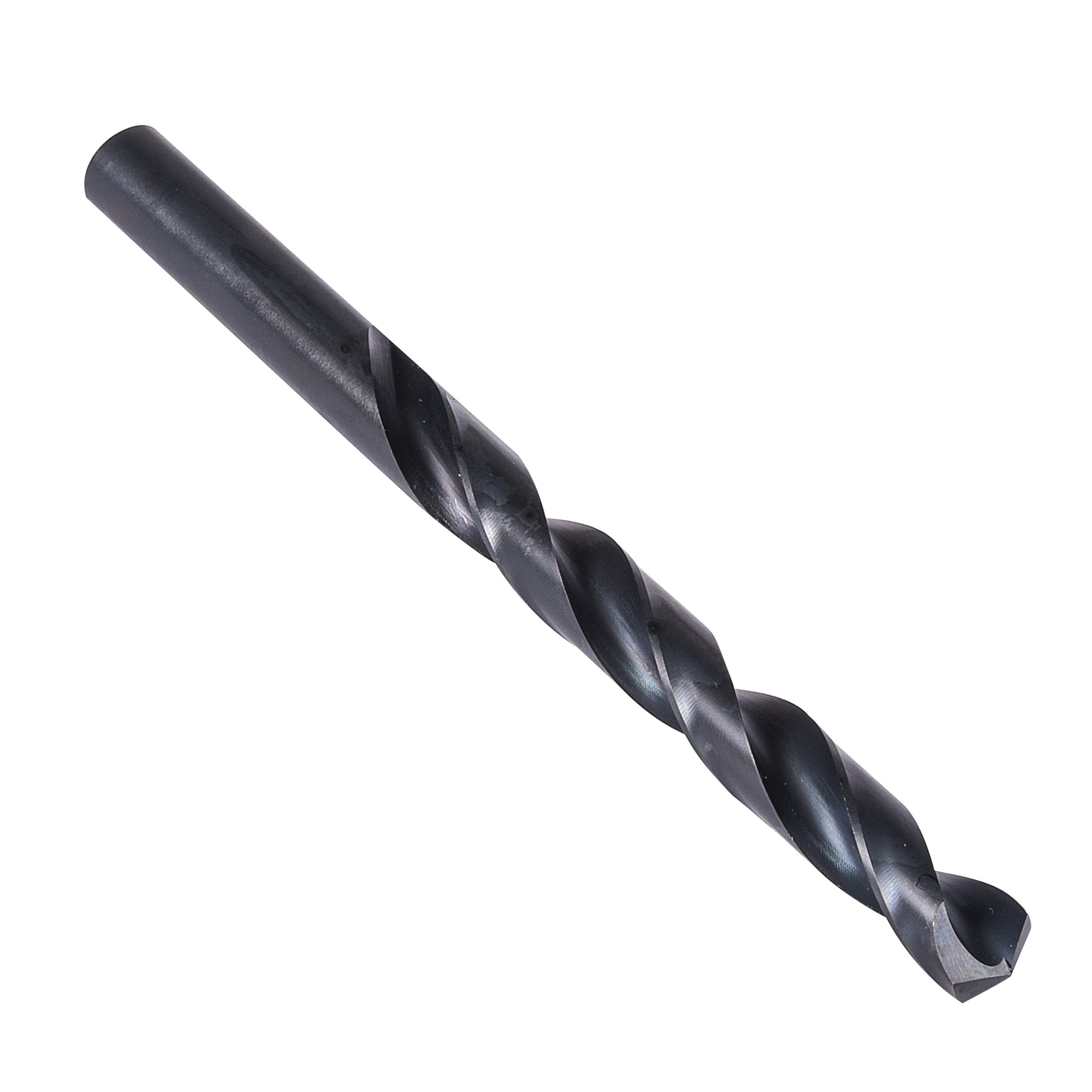

Precision Twist Drill UTD 058137
Precision Twist Drill 058137 501-6 1-Stage Type B Heavy Duty Aircraft Extension Drill, B Drill - Letter, 0.238 in Drill - Decimal Inch, 135 deg Point, HSS
Factory Order
Precision Twist Drill Aircraft Extension Drill, 1-Stage Type B Heavy Duty, Series: 501-6, B Drill Size - Letter, 0.238 in Drill Size - Decimal Inch, 6 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 1-7/16 in Flute Length, 0.104 in Shank, Straight Shank, 135 deg Point, Self-Centering/Split Point, Right Hand Cutting, HSS Cutting Edge, HSS, Steam Oxide, Applicable Materials: Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Unalloyed Titanium, Alloyed Titanium, Nickel
Features
- High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and non-ferrous materials
- Oxide prevents chip building, galling and welding on the work piece, it is commonly used on low carbons, stainless steel and ferrous metals web thinned
- Tapered web configuration
- No coolant channe
Specifications
ApplicationFor general drilling applications
Type 1-Stage Type B Heavy Duty
Series 501-6
Drill Size - Letter B
Drill Size - Decimal 0.238 in
Overall Length 6 in
Cutting Depth 4XD
Number of Flutes 2
