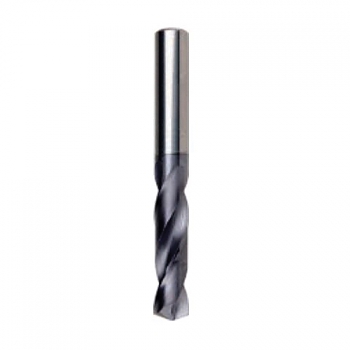

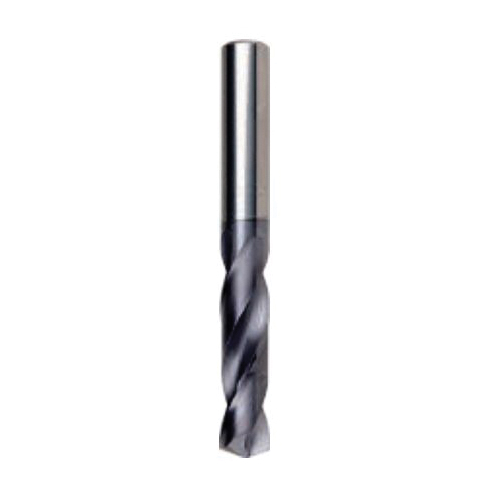

Dormer UTD 0626481

Dormer Short Length Drill Bit, Multi-Application, Series: R458, Imperial/Metric, 3.73 mm Drill - Metric, 0.1468 in Drill - Decimal Inch, 66 mm Overall Length, 3XD Cutting Depth, 4 Flutes, CTW Flute, 24 mm Flute Length, 6 mm Dia x 36 mm L Shank, Straight Shank, 140 deg Point, 4-Facet/Self-Centering/Split Point, Right Hand Cutting Direction, Carbide Cutting Edge, Carbide, TiAlN Coated, Black Gray, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel, Alloy Steel/Hardened and Tempered Steel, Alloy Steel Hardened, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Precipitation Hardened, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Titanium Unalloyed, Titanium Alloyed, Copper, Brass, Bronze, High Strength Bronze, Aluminum Magnesium Unalloyed and Aluminum Alloyed

• Features

• Dormer Pramet's force X programme is a new range of versatile solid carbide drills designed to provide an excellent level of performance with outstanding economy
• Consistent performance and repeatability in multiple applications across diverse machines and conditions
• Their design enables them to deliver high performance across a wide variety of materials, making them the ideal choice for general engineering and sub-contract environments
• Self-centering 4-facet split point and CTW flute construction for enhanced penetration rate
• TiAlN coating increases wear resistance and improves tool life at high RPM
