Precision Twist Drill UTD 087977

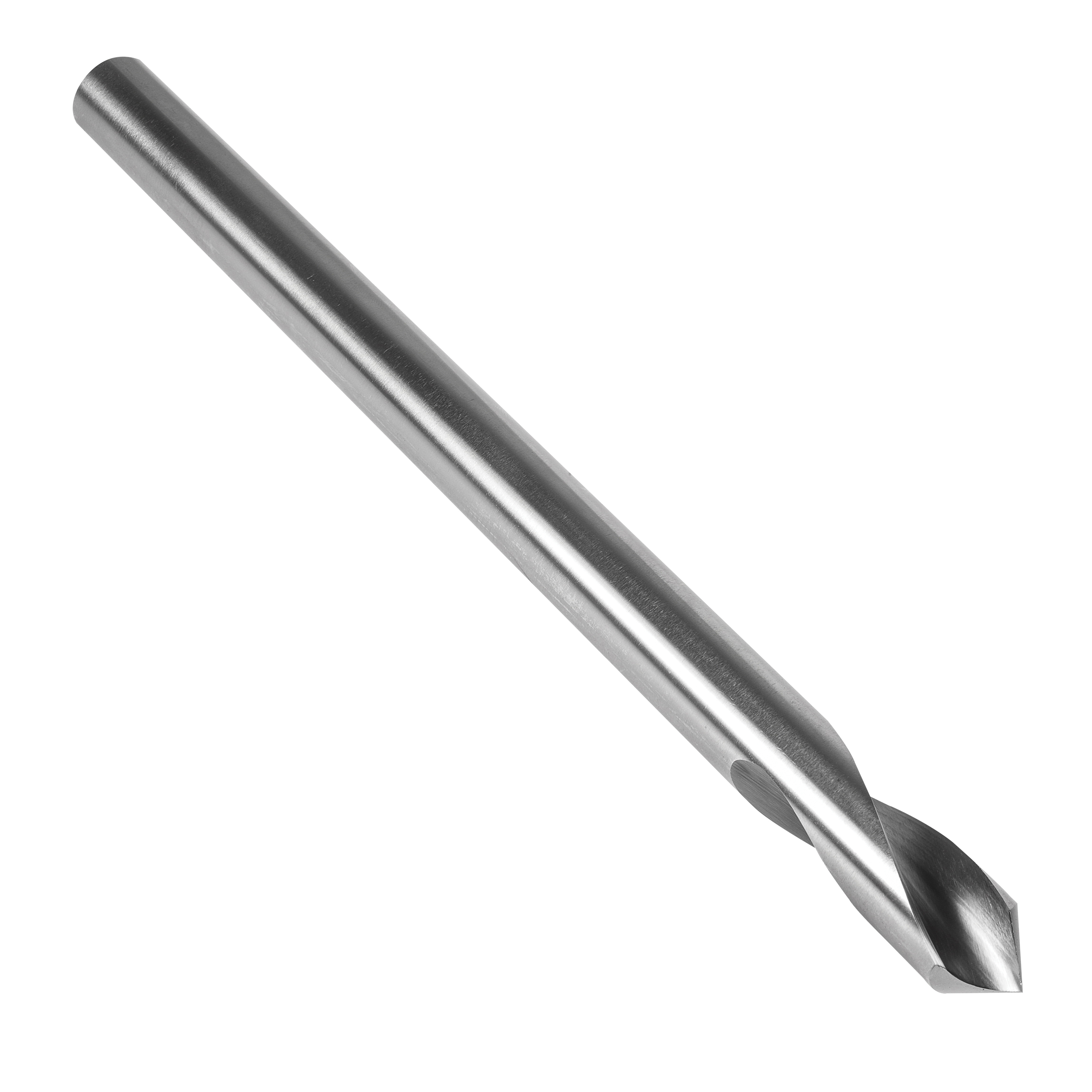

Precision Twist Drill 6000016 SPL-120 Long Length Special Purpose Spotting Drill, 5/8 in Dia, 9 in OAL, HSS, Bright
Invoice description:
Spot Drill 120 Utd 087977
Factory Order
Precision Twist Drill Spotting Drill, Long Length Special Purpose, Series: SPL-120, 5/8 in Diameter, 9 in Overall Length, 1XD Cutting Depth, Spiral Flute, 1-5/8 in Flute Length, 5/8 in Shank, Straight Shank, 120 deg Point, Conventional Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Bright, Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Material and Hard Material
Features
- Bright finish improves chip flow in soft or non-ferrous materials
- A medium alloyed high speed steel that has good machinability and good performance
- HSS exhibits hardness, toughness and wear resistance characteristics that make It attractive in a wide range of applications
Specifications
ApplicationFor light to heavy duty general purpose machining
Applicable MaterialsSteel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Material and Hard Material
Cutting Depth1XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Diameter5/8 in
FinishBright
Flute Length1-5/8 in
Flute TypeSpiral
MaterialHSS
Overall Length9 in
Point Angle120 deg
Point TypeConventional
SeriesSPL-120
Shank Size5/8 in
Shank TypeStraight
TypeLong Length Special Purpose
Additional Information
Country of OriginBR
