Union Butterfield UTD 1010378

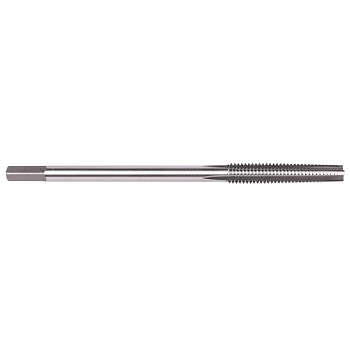

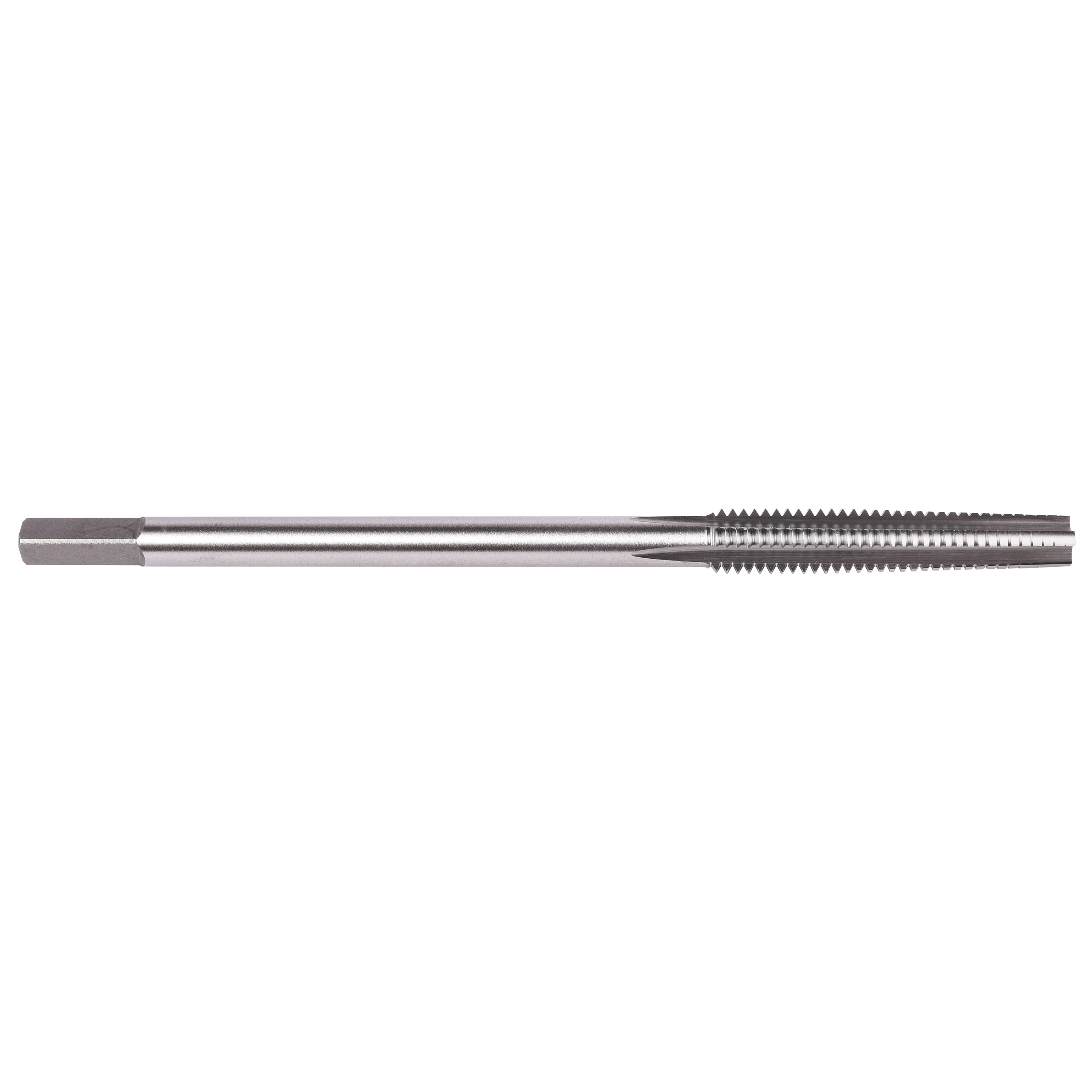

Union Butterfield 1010378 U1511 Nut Style Straight Flute Hand Tap, Right Hand Cutting, 1/2-13 Thread, H3 Thread Limit, Tapered Chamfer, 4 Flutes, Bright, HSS
Invoice description:
U1511: Straight Flute Pr Od Utd 1010378 Ubc U
Factory Order
Union Butterfield Straight Flute Hand Tap, Nut Style, Series: U1511, Measurement System: Imperial, UNC, 1/2-13, Tapered Chamfer, 4 Flutes, HSS, Bright, Class of Fit: 3B, Right Hand Cutting, 2-1/2 in Thread Length, 7 in Overall Length, 0.4 in Shank Dia, Steel, Copper, Cast Iron, Aluminum Magnesium and Synthetic Materials Material Application, H3 Thread Limit
Features
- They have a relatively long shank smaller than the minor diameter to permit accumulation of several nuts after tapping
- A medium alloyed high speed steel that has good machinability and good performance
- HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications
Specifications
ApplicationFor small production runs in conventional tapping machines
Chamfer TypeTapered
Class of Fit3B
Cutting DirectionRight Hand
Finish/CoatingBright
MaterialHSS
Material ApplicationSteel, Copper, Cast Iron, Aluminum Magnesium and Synthetic Materials
Measurement SystemImperial
Number of Flutes4
Overall Length7 in
SeriesU1511
Shank Diameter0.4 in
Thread Length2-1/2 in
Thread LimitH3
Thread Size1/2-13
Thread StandardUNC
TypeNut Style
Additional Information
Standards/ApprovalANSI Specified|CSA Approved
Country of OriginUS
