Union Butterfield UTD 6210161

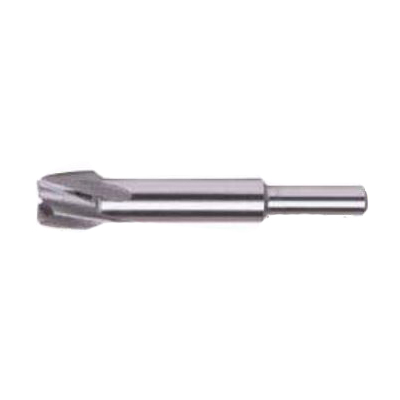

Union Butterfield 6005532 4706 Aircraft Short Straight Shank Interchangeable Pilot Counterbore, 1 in Dia Bore, 1/4 in Dia Shank, 2-13/16 in OAL, 4 Flutes, HSS, Pilot Shank Diameter Compatibility: 3/16 in
Factory Order
Union Butterfield Interchangeable Pilot Counterbore, Aircraft Short Straight Shank, Series: 4706, 1 in Bore, 2-13/16 in Overall Length, 1/4 in Shank Diameter, 7/8 in Shank Length, 4 Flutes, 1/2 in Pilot Length, Right Hand Cutting Direction, Pilot Shank Diameter Compatibility: 3/16 in, HSS, Bright
Features
- Supplied with corner radius to produce the fillets necessary for this type of work
- Designed for pneumatic or electric drills
Specifications
ApplicationFor the facing of bosses and counterboring recesses for spring pockets and screw heads
Bore Diameter1 in
Cutting DirectionRight Hand
FinishBright
MaterialHSS
Number of Flutes4
Overall Length2-13/16 in
Pilot Length1/2 in
Pilot Shank Diameter Compatibility3/16 in
Series4706
Shank Diameter1/4 in
Shank Length7/8 in
TypeAircraft Short Straight Shank
