MMM MIDM 12059

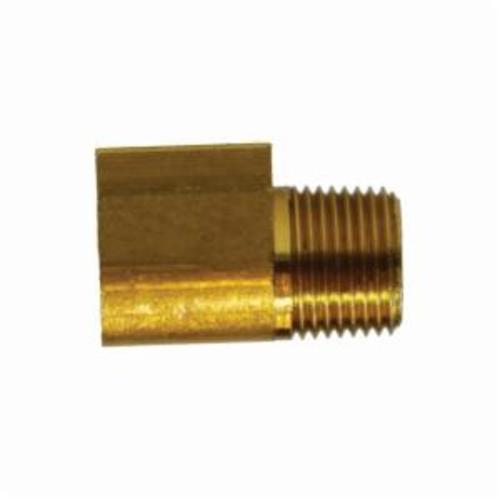

MMM 12059 90 deg Elbow, 1/4 x 1/8 in Nominal, Inverted Flare x Male NPTF End Style, CA360 Brass, Import
Invoice description:
Elbow 90 Deg Elb 1/4 X 1 /8in Ca360 Brs Midland Industries 12059 90 Deg Elbow, 1/4 X 1/8 In Nominal, Inverted Flare X Male Nptf End Style, Ca360 Brass, Domestic
Factory Order
MMM Elbow, 90 deg Elbow Fitting/Connector, 1/4 x 1/8 in Nominal, Inverted Flare x Male NPTF End Style, 0.03 in Thickness, 1400 psi Pressure, -65 to 250 deg F, CA360 Brass, 0.33 in L x 0.65 in W Dimensions, Import
Features
- Excellent vibration resistance
- Very low cost and reusable
- Short nut affords very close tube bends
- Seats and threads are internal and protected
- /- 0.03 tolerance on all dimensions
- Compact, excellent vibration life, short nut affords very close tube bends, steel or brass tube nut
Specifications
ApplicationHydraulic Brake, Power Steering, Fuel Lines and Transmission Cooler Lines, LP and Natural Gas, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared
Fitting/Connector Ty90 deg Elbow
Nominal Size1/4 x 1/8 in
End StyleInverted Flare x Male NPTF
Thickness0.03 in
Pressure Rating1400 psi
Additional Information
Standards/ApprovalASA|ASME|MS and SAE 040202
Country of OriginUS
