MMM MIDM 12077

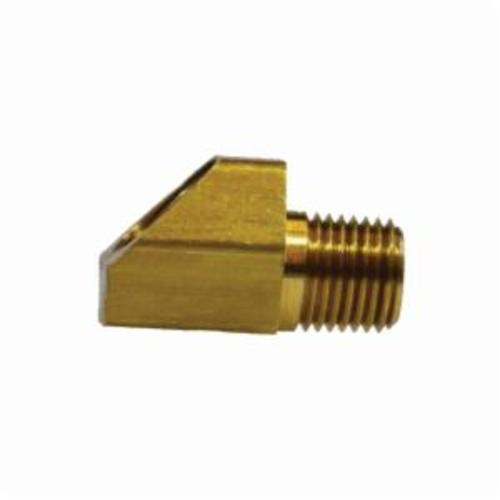

MMM 12077 90 deg Elbow, 1/2 x 3/8 in Nominal, Inverted Flare x Male NPTF End Style, CA360 Brass
Invoice description:
Elbow 90 Deg Elb 1/2 X 3 /8in Ca360 Brs Midland Industries 12077 90 Deg Elbow, 1/2 X 3/8 In Nominal, Inverted Flare X Male Nptf End Style, Ca360 Brass
Factory Order
MMM Elbow, 90 deg Elbow Fitting/Connector, 1/2 x 3/8 in Nominal, Inverted Flare x Male NPTF End Style, 0.032 in Thickness, 0.84 in Hex, 750 psi Pressure, -65 to 250 deg F, CA360 Brass, 0.38 in L x 0.91 in W Dimensions
Features
- Excellent vibration resistance
- Very low cost and reusable
- Short nut affords very close tube bends
- Seats and threads are internal and protected
- /- 0.03 tolerance on all dimensions
- Compact, excellent vibration life, short nut affords very close tube bends, steel or brass tube nut
Specifications
ApplicationHydraulic Brake, Power Steering, Fuel Lines and Transmission Cooler Lines, LP and Natural Gas, Copper, Brass, Aluminum and Steel Hydraulic Tubing That Can Be Flared
Fitting/Connector Ty90 deg Elbow
Nominal Size1/2 x 3/8 in
End StyleInverted Flare x Male NPTF
Thickness0.032 in
Hex Size0.84 in
Pressure Rating750 psi
Additional Information
Standards/ApprovalASA|ASME|MS and SAE 040302
Country of OriginUS
