MMM MIDM 18247

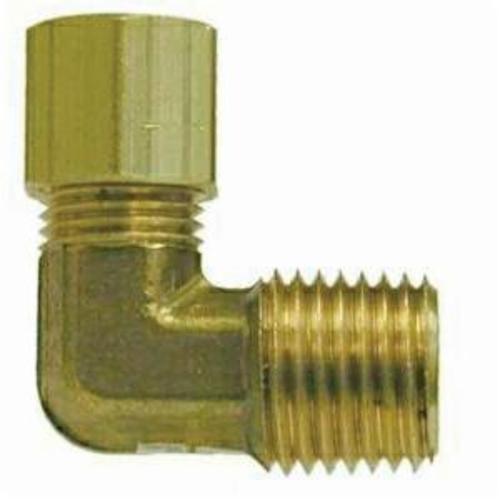

MMM 18247 90 deg Tube-to-Pipe Elbow, 7/16 x 1/4 in Nominal, Compression x MNPTF End Style, CA377 Brass
Invoice description:
Elbow Tube-to-pipe 90 De G Elb Ca377 Brs Midland Industries 18247 90 Deg Tube-to-pipe Elbow, 7/16 X 1/4 In Nominal, Compression X Mnptf End Style, Ca377 Brass
Factory Order
MMM Tube-to-Pipe Elbow, 90 deg Elbow Fitting/Connector, 7/16 x 1/4 in Nominal, Compression x MNPTF End Style, 200 psi Pressure, -65 to 250 deg F, CA377 Brass, Forged Method of Manufacture
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
- 0.56 in body size
Specifications
ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
Fitting/Connector Ty90 deg Elbow
Nominal Size7/16 x 1/4 in
End StyleCompression x MNPTF
Pressure Rating200 psi
Additional Information
Standards/ApprovalASA|ASME and SAE 060202
Country of OriginUS
