3M 3MA 7010297308

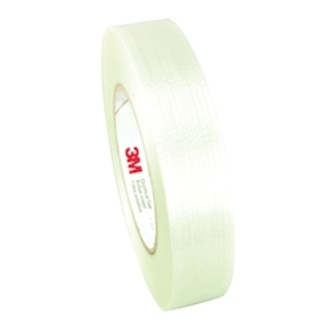

3M 7010297308 1339 Filament Reinforced Tape, 60 yd L x 1 in W, 6.5 mil THK, Acrylic Adhesive, Polyester Film Backing, Translucent

Invoice description: Tape Electricalfilament Reinfrcd/1339/1in X 60yd Tape Electricalfilament 3m Reinforced/1339/1in X 60yd/36 Rolls/case

UPC: 054007082071
UNSPSC: 31201502
Manufacturer PN: 7010297308
$56.51 RL
Factory Order
Estimated to ship in 17 days
QTY:


3M, 7010297308, Tape, Filament Reinforced, Series: 1339, 60 yd Length, 1 in Width, 6.5 mil Thickness, Translucent, 3 in Diameter Core, Acrylic Adhesive, Polyester Film Backing, 35 in-oz Adhesion Strength, 5500 V Dielectric Strength, 275 in-lb Tensile Strength, 266 deg F Maximum Operating, 32 deg F Minimum Operating, Specifications Met: ASTM D1000

  • Features

  • Conformable, solvent-resistant, high temperature filament tape with acrylic adhesive
  • Designed for applications needing both the dielectric strength of polyester film and the high mechanical strength of glass fibers
  • Low stretch, high tensile and edge tear-resistant

Specifications

ApplicationFor anchoring lead wires to banding coils and end turn taping
Adhesion Strength35 in-oz
Adhesive MaterialAcrylic
Backing MaterialPolyester Film
ColorTranslucent
Core Diameter3 in
Dielectric Strength5500 V
Length60 yd
Maximum Operating Temperature266 deg F
Minimum Operating Temperature32 deg F
Series1339
Specifications MetASTM D1000
Tensile Strength275 in-lb
Thickness6.5 mil
Width1 in

Additional Information

Standards/ApprovalCSA Certified|UL Listed|UL 510 File No. E17386/E17
Country of OriginUS
