Starrett® LSS S668A

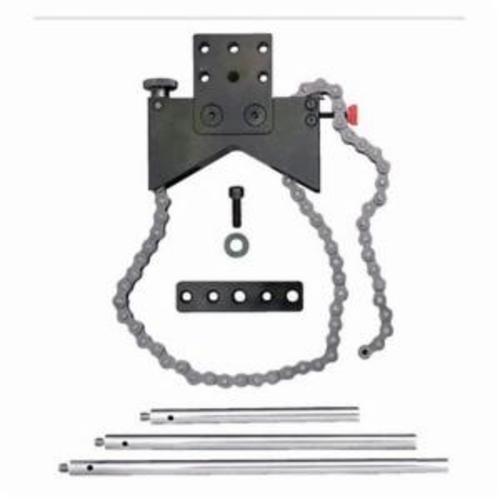

Starrett® S668A Shaft Alignment Clamp Without Case, 12-3/4 in L, Stainless Steel Band/Aluminum Frame Body
Starrett® Shaft Alignment Clamp, 12-3/4 in Length, 15/32 in Width, Stainless Steel Band/Aluminum Frame Body, Black Anodized
Features
- Light weight clamp design made of black anodized aluminum
- Rigid 3/8 in Dia stainless steel indicator posts provided in three lengths 5 in, 7-7/16 in and 9 in
- Extension plate allows for added radial clearance
- Heavy duty roller chain accommodates 3/4 - 7-1/2 in Dia shaft
- Excess roller chain can be secured to the side of the chain clamp
- A second shaft alignment clamp can be mounted across from the first clamp to act as a vertical "target" for face alignment
- System is capable of addressing radial and angular misalignment problems and can be set up within minutes
- V-Shaped jaw
Specifications
ApplicationFor alignment of motors, pumps and compressors
Length 12-3/4 in
Width 15/32 in
Body Material Stainless Steel Band/Aluminum Frame
