GARR GARR 01017

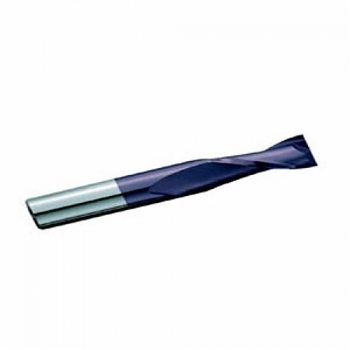

GARR 01017 160MA Center Cutting Single End Square End Stub Length End Mill, 1/32 in Dia Cutter, 1/16 in Length of Cut, 2 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, TiALN Coated

UNSPSC: 23242511
Manufacturer PN: 01017
$17.40 EA
Factory Order
Estimated to ship in 4 days
QTY:


GARR End Mill, Center Cutting Single End Square End Stub Length, Series: 160MA, 1/32 in Diameter Cutter, 1-1/2 in Overall Length, 1/16 in Length of Cut, 2 Flutes, Spiral Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Plain/Round Shank, 1-7/16 in Shank Length, Solid Submicron Carbide, TiALN Coated

  • Features

  • Shorter flute length for rigidity
  • Extremely versatile
  • Up to 40% faster than uncoated

Specifications

ApplicationDry or Semi-Dry Machining
Cutter Diameter1/32 in
Cutting DirectionRight Hand
FinishTiALN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut1/16 in
MaterialSolid Submicron Carbide
Number of Flutes2
Overall Length1-1/2 in
Series160MA
Shank Diameter1/8 in
Shank Length1-7/16 in
Shank TypePlain/Round
TypeCenter Cutting Single End Square End Stub Length
