ILSCO FTZ 45315-P100

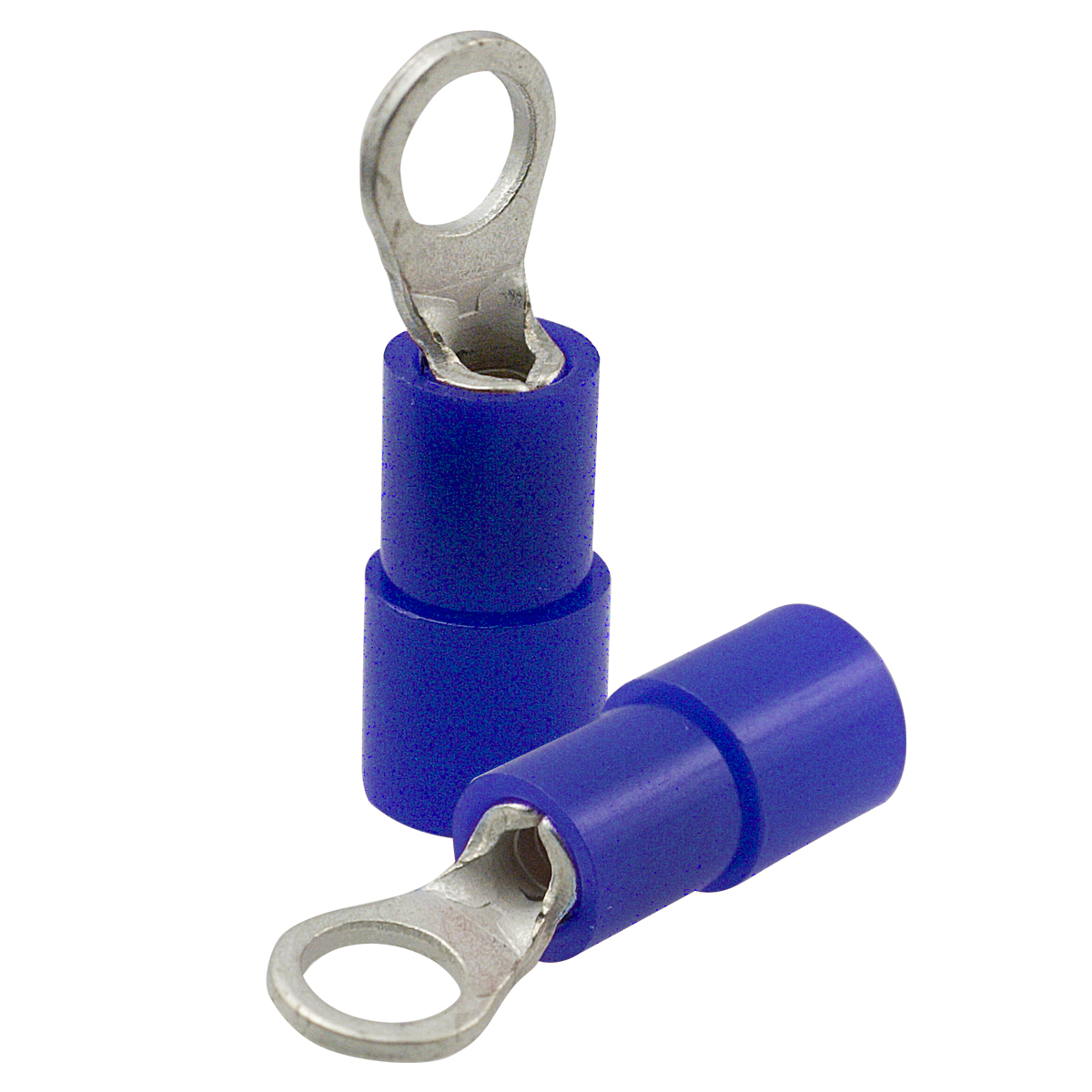

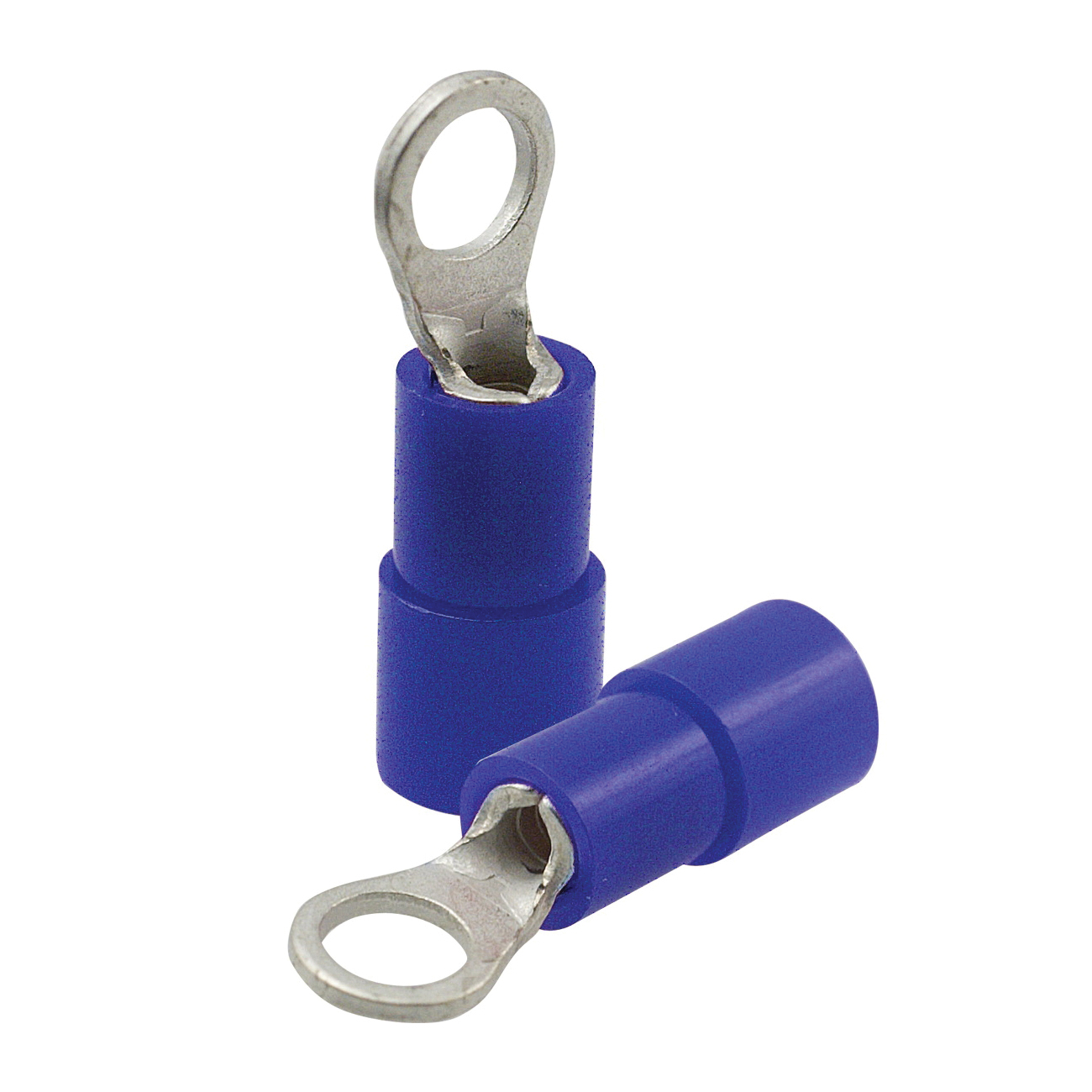

ILSCO ClearChoice 45315-P100 Insulated Ring Terminal, 16 to 14 AWG Conductor, 1.06 in L, Copper Alloy, Blue
Invoice description:
16-14 Ga. Vinyl Ins. Rin G 1/4" Stud - 100/ba
UPC: 783669002164
UNSPSC:
39121405
Manufacturer PN: 45315-P100
$0.32 EA
Factory OrderEstimated to ship in 10 days
ILSCO ClearChoice Ring Terminal, Insulated, Copper Conductor, 16 to 14 AWG Conductor, 1/4 in Stud, 1.06 in Length, Ring Tongue, 0.53 in W Tongue, 600 VAC, 0.175 in Dia Wire Insulation, 90 deg C, Copper Alloy, Electro-Tin Plated, Blue
Features
- Provides easy wire range identification
- Provides maximum conductivity
- Provides low contact resistance
- Vinyl insulation
- Provides tough pliable insulative qualities to protect connectors and wire from corrosion as well as providing some strain relief
- Ensures reliability for copper conductor
Specifications
ApplicationTerminating Connector Applications
ColorBlue
Conductor Size16 to 14 AWG
Conductor TypeCopper
FinishElectro-Tin Plated
Length1.06 in
MaterialCopper Alloy
Specifications0.175 in Dia Wire Insulation
Stud Size1/4 in
Temperature Rating90 deg C
Tongue Size0.53 in W
Tongue TypeRing
TypeInsulated
Voltage Rating600 VAC
Additional Information
Standards/ApprovalUL 8M24 File No. E158587|CSA Certified|PROP65: it is not known to contain any chemicals associated with this regulation
Country of OriginUS
