GARR GARR 11057

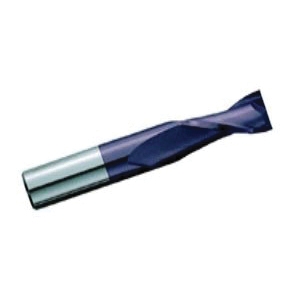

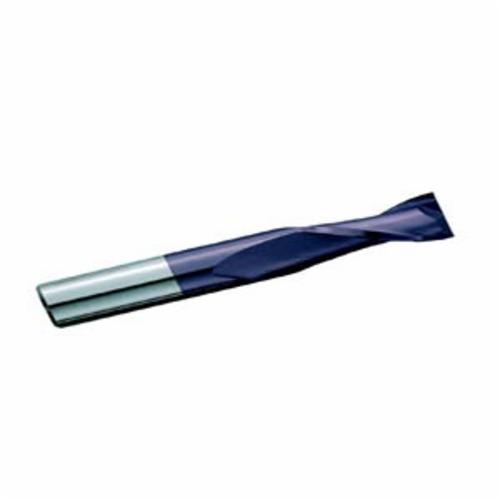

GARR 220MA 3/32 Center Cutting Square End Standard Length End Mill, 3/32 in Dia Cutter, 3/8 in Length of Cut, 2 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, TiALN Coated

UNSPSC: 23242511
Manufacturer PN: 220MA 3/32
$15.70 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Center Cutting Square End Standard Length, Series: 220MA, 3/32 in Diameter Cutter, 1-1/2 in Overall Length, 3/8 in Length of Cut, 2 Flutes, Spiral Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Plain/Round Shank, 1-1/8 in Shank Length, Solid Submicron Carbide, TiALN Coated

  • Features

  • Up to 40% faster than uncoated
  • Extremely versatile

Specifications

ApplicationDry or Semi-Dry Machining
Type Center Cutting Square End Standard Length
Series 220MA
Cutter Diameter 3/32 in
Overall Length 1-1/2 in
Length of Cut 3/8 in
Number of Flutes 2
Flute Type Spiral
Shank Diameter 1/8 in
Cutting Direction Right Hand
Helix Angle 30 deg
