Iscar ISCAR 5510089

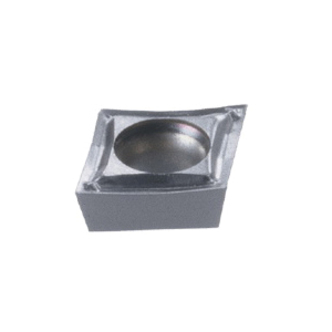

Iscar 5510089 1-Sided Turning Insert, ANSI Code: CPGT 2-0-SM IC907, CPGT Insert, Material Grade: H, K, M, N, P, S, 2-0 Insert, Rhombic Shape, 06 Seat, Positive Rake, Carbide, Manufacturers Grade: IC907
Invoice description:
Cpgt 2-0-sm Ic907 Turning Insert
Factory Order
Iscar Turning Insert, 1-Sided, CPGT Insert, 2-0 Insert, Rhombic, 2 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 2.38 mm Thickness, 06 Seat, Positive Rake, SM Chipbreaker, 0.2 mm Corner Radius, 2.8 mm Hole Dia, Manufacturers Grade: IC907, ANSI Code: CPGT 2-0-SM IC907, ISO Code: CPGT 060202-SM IC907, 80 deg Included Angle, 11 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Positive flank
- Positive rake, low cutting forces
- Chip breaking in moderate feed range
- IC907 grade a tough sub-micron substrate, TiAlN PVD coated
- Suitable for low-to-medium cutting speeds
- Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeCPGT 2-0-SM IC907
ChipbreakerSM
Corner Radius0.2 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter2.8 mm
Included Angle80 deg
Inscribed Circle6.35 mm
Insert Size2-0
Insert StyleCPGT
ISO CodeCPGT 060202-SM IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut2 mm
RakePositive
Relief Angle11 deg
Seat Size06
ShapeRhombic
Thickness2.38 mm
Type1-Sided
Additional Information
Country of OriginIL
