Iscar ISCAR 5510087

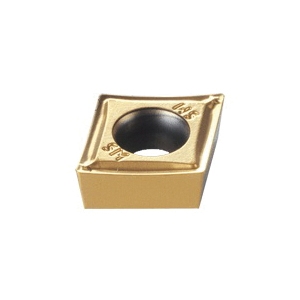

Iscar 5510087 ISOTURN 1-Sided Turning Insert, ANSI Code: CCGT 2-0-SM IC907, CCGT Insert, Material Grade: H, K, M, N, P, S, 2-0 Insert, Rhombic Shape, 06 Seat, Positive Rake, Carbide, Manufacturer's Grade: IC907
Factory Order

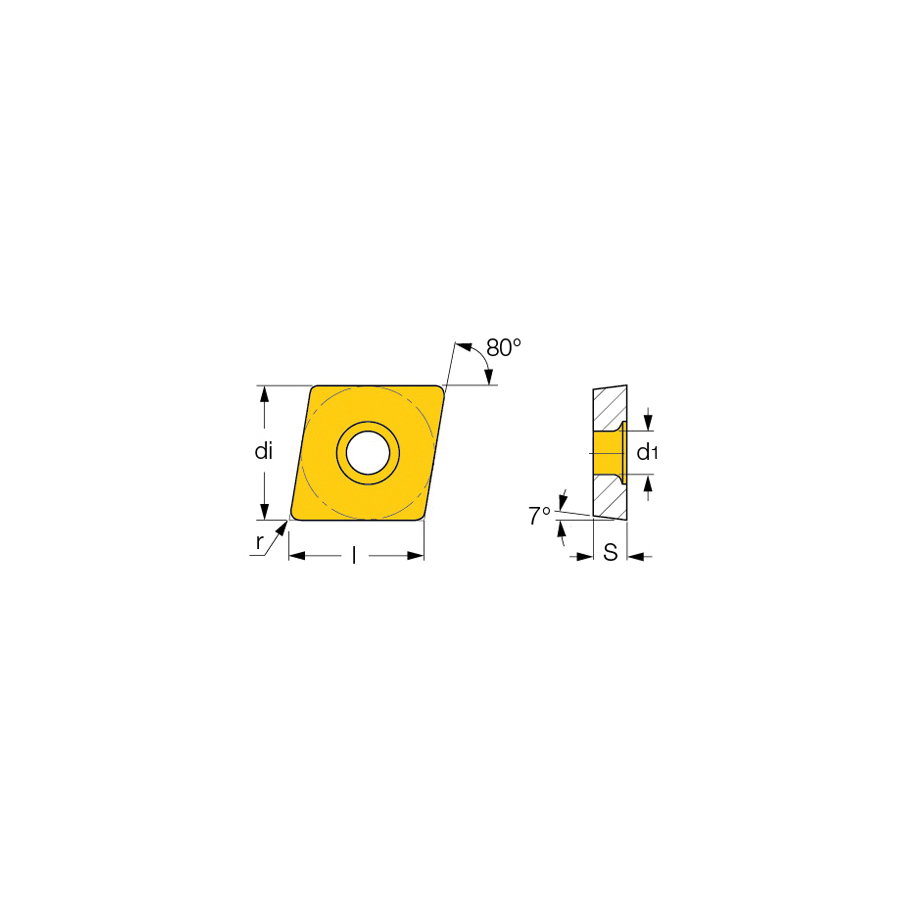

Iscar Turning Insert, 1-Sided, Series: ISOTURN, CCGT Insert, 2-0 Insert, Rhombic, 2 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 2.38 mm Thickness, 06 Seat, Positive Rake, SM Chipbreaker, 0.2 mm Corner Radius, 2.79 mm Hole Dia, Manufacturer's Grade: IC907, ANSI Code: CCGT 2-0-SM IC907, ISO Code: CCGT 060202-SM IC907, 80 deg Included Angle, 7 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
- Used for soft materials and exotic alloys
- IC907 grade developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
- Suitable for low-to-medium cutting speeds
- Chipbreaker on one side, with hole and countersink
Specifications
ApplicationSemi-Finishing and Finishing
Type 1-Sided
Series ISOTURN
Insert Style CCGT
Insert Size 2-0
Shape Rhombic
Maximum Depth of Cut 2 mm
Inscribed Circle 6.35 mm
Thickness 2.38 mm
