Iscar ISCAR 5540006

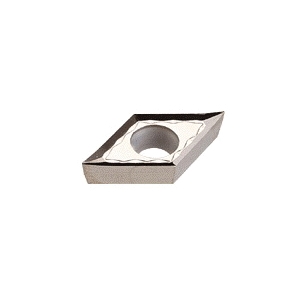

Iscar 5540006 ISOTURN 1-Sided Turning Insert, ANSI Code: DCGT 3-2-AS IC20, DCGT Insert, Material Grade: H, K, M, N, S, 3-2 Insert, Rhombic Shape, 11 Seat, Positive Rake, Carbide, Manufacturers Grade: IC20
Invoice description:
Dcgt 3-2-as Ic20
Factory Order

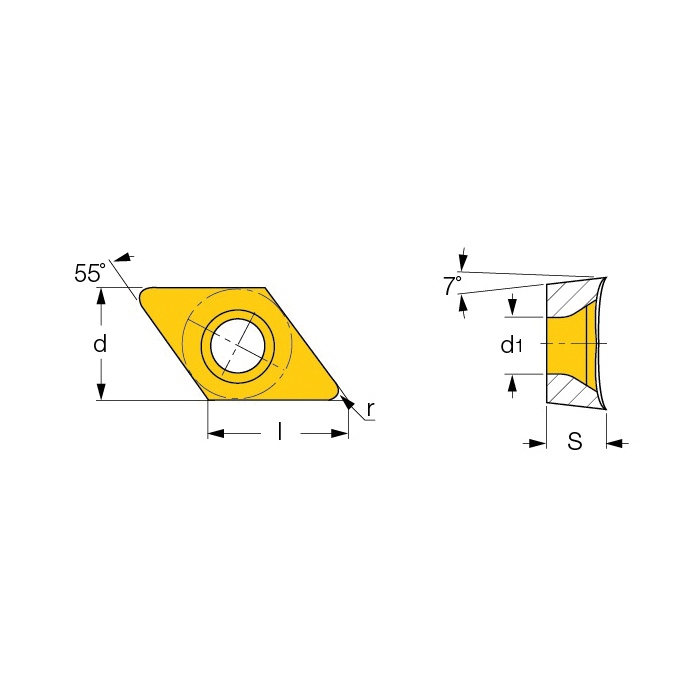

Iscar Turning Insert, 1-Sided, Series: ISOTURN, DCGT Insert, 3-2 Insert, Rhombic, 3 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 11 Seat, Positive Rake, AS Chipbreaker, 0.8 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: IC20, ANSI Code: DCGT 3-2-AS IC20, ISO Code: DCGT 11T308-AS IC20, 55 deg Included Angle, 7 deg Relief Angle, Carbide, Uncoated, Material Grade: H, K, M, N, S, For Use On: Stainless Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Positive flank
- Very positive rake angle and sharp cutting edge for machining aluminum
- IC20 grade used for semi-finishing, finishing and semi-roughing of aluminum, cast iron and stainless steel
Specifications
ApplicationMachining Applications
ANSI CodeDCGT 3-2-AS IC20
ChipbreakerAS
Corner Radius0.8 mm
FinishUncoated
For Use OnStainless Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter4.4 mm
Included Angle55 deg
Inscribed Circle9.52 mm
Insert Size3-2
Insert StyleDCGT
ISO CodeDCGT 11T308-AS IC20
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut3 mm
RakePositive
Relief Angle7 deg
Seat Size11
SeriesISOTURN
ShapeRhombic
Thickness3.97 mm
Type1-Sided
