Iscar ISCAR 5540029

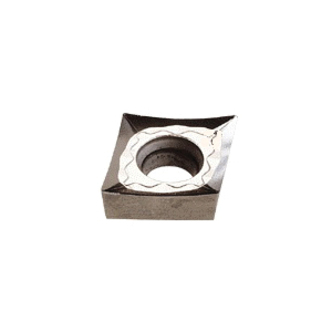

Iscar 5540029 ISOTURN 1-Sided Turning Insert, ANSI Code: CCGT 2-.004 AS IC20, CCGT Insert, Material Grade: H, K, M, N, S, 2-.004 Insert, Rhombic Shape, 06 Seat, Positive Rake, Carbide, Manufacturers Grade: IC20
Invoice description:
Ccgt 2-.004-as Ic20
Factory Order

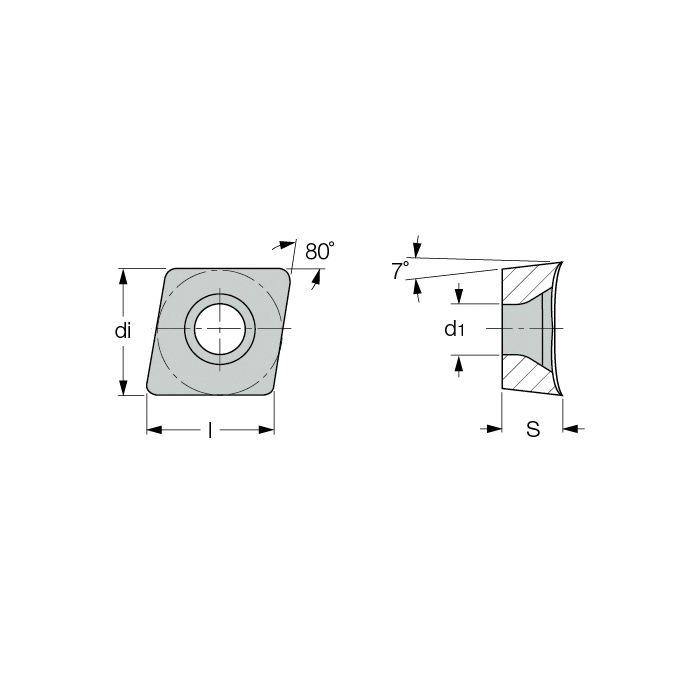

Iscar Turning Insert, 1-Sided, Series: ISOTURN, CCGT Insert, 2-.004 Insert, Rhombic, 2 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 2.38 mm Thickness, 06 Seat, Positive Rake, AS Chipbreaker, 0.1 mm Corner Radius, 2.8 mm Hole Dia, Manufacturers Grade: IC20, ANSI Code: CCGT 2-.004 AS IC20, ISO Code: CCGT 060201-AS IC20, 80 deg Included Angle, 7 deg Relief Angle, Carbide, Uncoated, Material Grade: H, K, M, N, S, For Use On: Stainless Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Positive flank
- Very positive rake angle and sharp cutting edge for machining aluminum
- IC20 grade used for semi-finishing, finishing and semi-roughing of aluminum, cast iron and stainless steel
Specifications
ApplicationMachining Applications
ANSI CodeCCGT 2-.004 AS IC20
ChipbreakerAS
Corner Radius0.1 mm
FinishUncoated
For Use OnStainless Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter2.8 mm
Included Angle80 deg
Inscribed Circle6.35 mm
Insert Size2-.004
Insert StyleCCGT
ISO CodeCCGT 060201-AS IC20
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut2 mm
RakePositive
Relief Angle7 deg
Seat Size06
SeriesISOTURN
ShapeRhombic
Thickness2.38 mm
Type1-Sided
