Iscar ISCAR 5550210

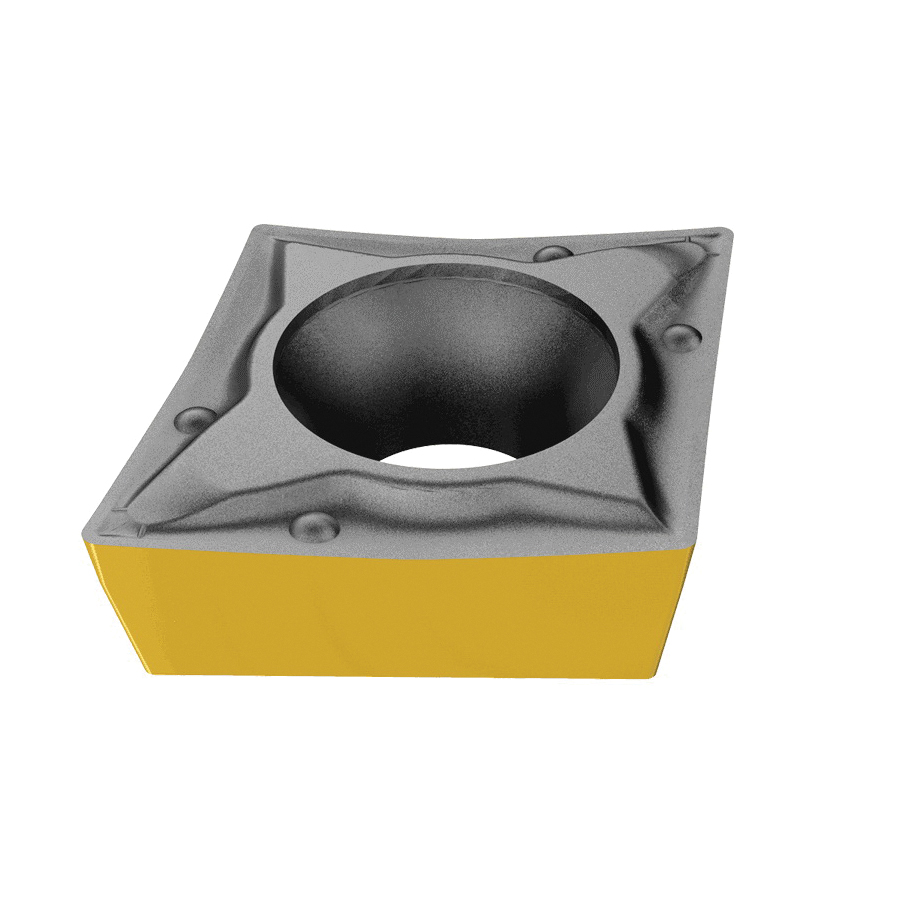

Iscar 5550210 ISOTURN 1-Sided Turning Insert, ANSI Code: CCMT 2-1-PF IC807, CCMT Insert, Material Grade: H, K, M, P, S, 2-1 Insert, Rhombic Shape, 06 Seat, Positive Rake, Carbide, Manufacturers Grade: IC807
Invoice description:
Ccmt 2-1-pf Ic807
Factory Order

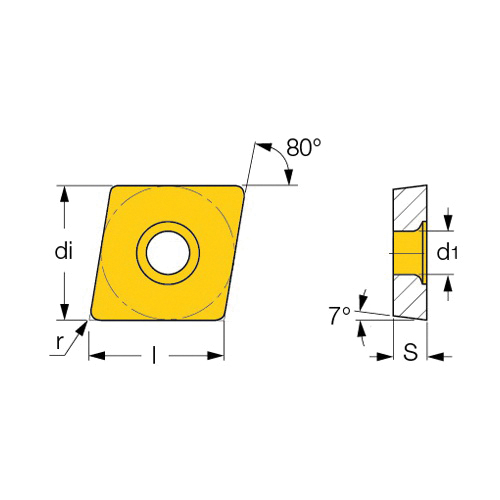

Iscar Turning Insert, 1-Sided, Series: ISOTURN, CCMT Insert, 2-1 Insert, Rhombic, 2.5 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 2.38 mm Thickness, 06 Seat, Positive Rake, PF Chipbreaker, 0.4 mm Corner Radius, 2.8 mm Hole Dia, Manufacturers Grade: IC807, ANSI Code: CCMT 2-1-PF IC807, ISO Code: CCMT 060204-PF IC807, 80 deg Included Angle, 7 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Features
- Positive rake, low cutting forces
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeCCMT 2-1-PF IC807
ChipbreakerPF
Corner Radius0.4 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Hole Diameter2.8 mm
Included Angle80 deg
Inscribed Circle6.35 mm
Insert Size2-1
Insert StyleCCMT
ISO CodeCCMT 060204-PF IC807
Manufacturers GradeIC807
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut2.5 mm
RakePositive
Relief Angle7 deg
Seat Size06
SeriesISOTURN
ShapeRhombic
Thickness2.38 mm
Type1-Sided
Additional Information
Country of OriginIL
