Iscar ISCAR 5550213

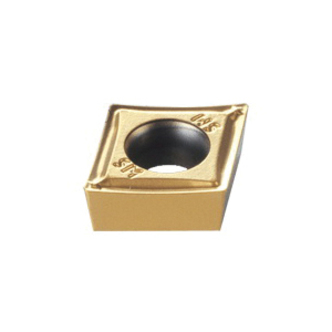

Iscar 5550213 ISOTURN 1-Sided Turning Insert, ANSI Code: CCMT 2-1-SM IC807, CCMT Insert, Material Grade: H, K, M, P, S, 2-1 Insert, Rhombic Shape, 06 Seat, Positive Rake, Carbide, Manufacturers Grade: IC807
Invoice description:
Ccmt 2-2-sm Ic807
Factory Order
Iscar Turning Insert, 1-Sided, Series: ISOTURN, CCMT Insert, 2-1 Insert, Rhombic, 2.5 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 2.38 mm Thickness, 06 Seat, Positive Rake, SM Chipbreaker, 0.8 mm Corner Radius, 0.11 in Hole Dia, Manufacturers Grade: IC807, ANSI Code: CCMT 2-1-SM IC807, ISO Code: CCMT 060208-SM IC807, 80 deg Included Angle, 7 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Features
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
- IC807 grade a tough sub-micron substrate, SUMO TEC TiAlN PVD coated
- Suitable for low-to-medium cutting speeds
- Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeCCMT 2-1-SM IC807
ChipbreakerSM
Corner Radius0.8 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Hole Diameter0.11 in
Included Angle80 deg
Inscribed Circle6.35 mm
Insert Size2-1
Insert StyleCCMT
ISO CodeCCMT 060208-SM IC807
Manufacturers GradeIC807
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut2.5 mm
RakePositive
Relief Angle7 deg
Seat Size06
SeriesISOTURN
ShapeRhombic
Thickness2.38 mm
Type1-Sided
Additional Information
Country of OriginIL
