Iscar ISCAR 5550219

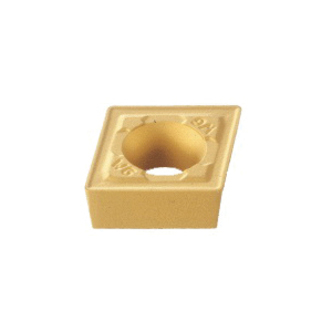

Iscar 5550219 ISOTURN Turning Insert, ANSI Code: CCMT 3-1-WG, CCMT Insert, 3-1 Insert, Rhombic Shape, Positive Rake, Manufacturers Grade: IC8250
Invoice description:
Ccmt 3-1-wg Ic8250 Turning Inserts
Factory Order
Iscar Turning Insert, Series: ISOTURN, CCMT Insert, 3-1 Insert, Rhombic, 9.52 mm Inscribed Circle, 3.97 mm Thickness, Positive Rake, 0.4 mm Corner Radius, Manufacturers Grade: IC8250, ANSI Code: CCMT 3-1-WG, ISO Code: CCMT-WG, 80 deg Included Angle
Features
- 80 deg rhombic inserts with a 7 deg positive flank and a wiper near the corner for high-feed finishing
- Three to five times better surface finish compared to standard turning inserts at the same feeds
Specifications
ApplicationBoring
ANSI CodeCCMT 3-1-WG
Corner Radius0.4 mm
Included Angle80 deg
Inscribed Circle9.52 mm
Insert Size3-1
Insert StyleCCMT
ISO CodeCCMT-WG
Manufacturers GradeIC8250
RakePositive
SeriesISOTURN
ShapeRhombic
Thickness3.97 mm
Additional Information
Standards/ApprovalISO 13399
