Iscar ISCAR 5550445

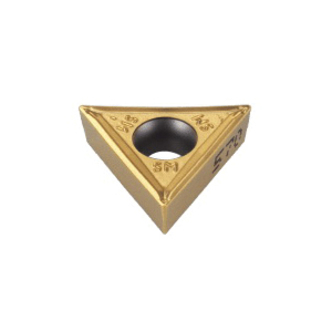

Iscar 5550445 ISOTURN Turning Insert, ANSI Code: TCMT 2-1-SM IC807, TCMT Insert, Material Grade: H, K, M, P, S, 2-1 Insert, Triangular Shape, 11 Seat, Positive Rake, For Use On Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Invoice description:
Tcmt 2-1-sm Ic807
Factory Order

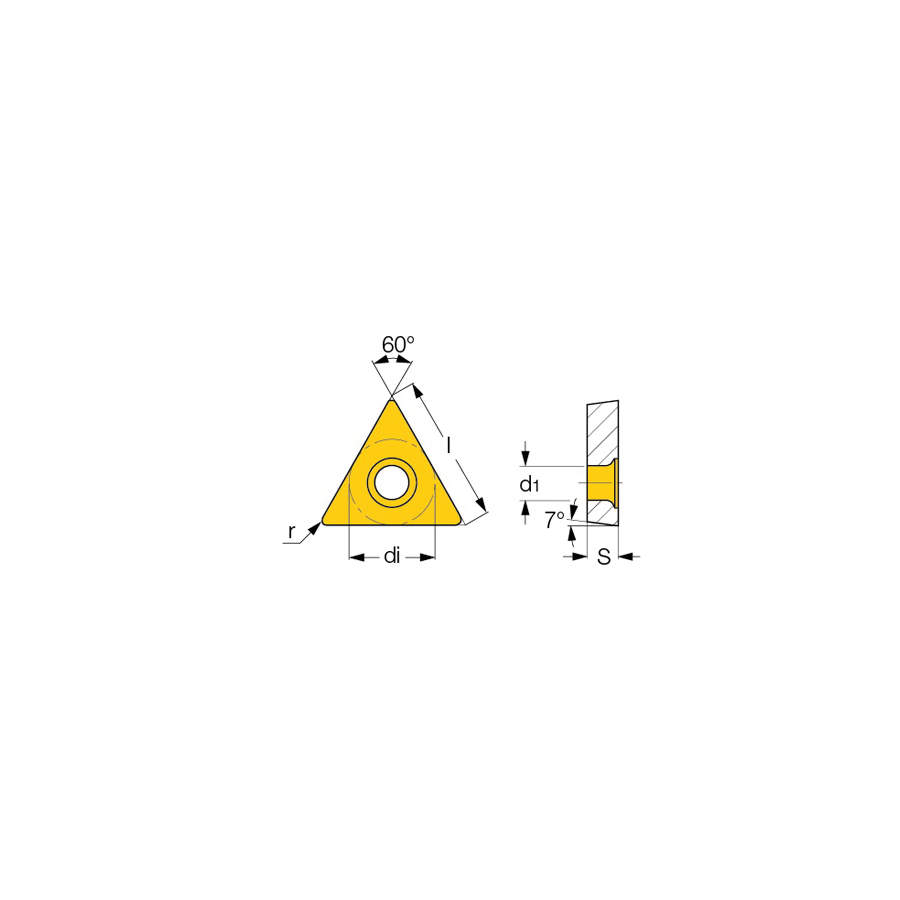

Iscar Turning Insert, Series: ISOTURN, TCMT Insert, 2-1 Insert, Triangular, 3 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 2.38 mm Thickness, 11 Seat, Positive Rake, SM Chipbreaker, 0.4 mm Corner Radius, 2.8 mm Hole Dia, Manufacturers Grade: IC807, ANSI Code: TCMT 2-1-SM IC807, ISO Code: TCMT 110204-SM IC807, 60 deg Included Angle, 7 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Features
- Positive flank
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
- Chipbreaker on one side with hole and countersink
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeTCMT 2-1-SM IC807
ChipbreakerSM
Corner Radius0.4 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Hole Diameter2.8 mm
Included Angle60 deg
Inscribed Circle6.35 mm
Insert Size2-1
Insert StyleTCMT
ISO CodeTCMT 110204-SM IC807
Manufacturers GradeIC807
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut3 mm
RakePositive
Relief Angle7 deg
Seat Size11
SeriesISOTURN
ShapeTriangular
Thickness2.38 mm
