Iscar ISCAR 5550483

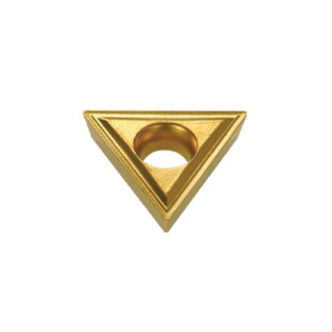

Iscar 5550483 ISOTURN Turning Insert, ANSI Code: TPMT 2-0 IC807, TPMT Insert, Material Grade: H, K, M, P, S, 2-0 Insert, Triangular Shape, 11 Seat, Positive Rake, For Use On Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Invoice description:
Tpmt 2-0 Ic807
Factory Order

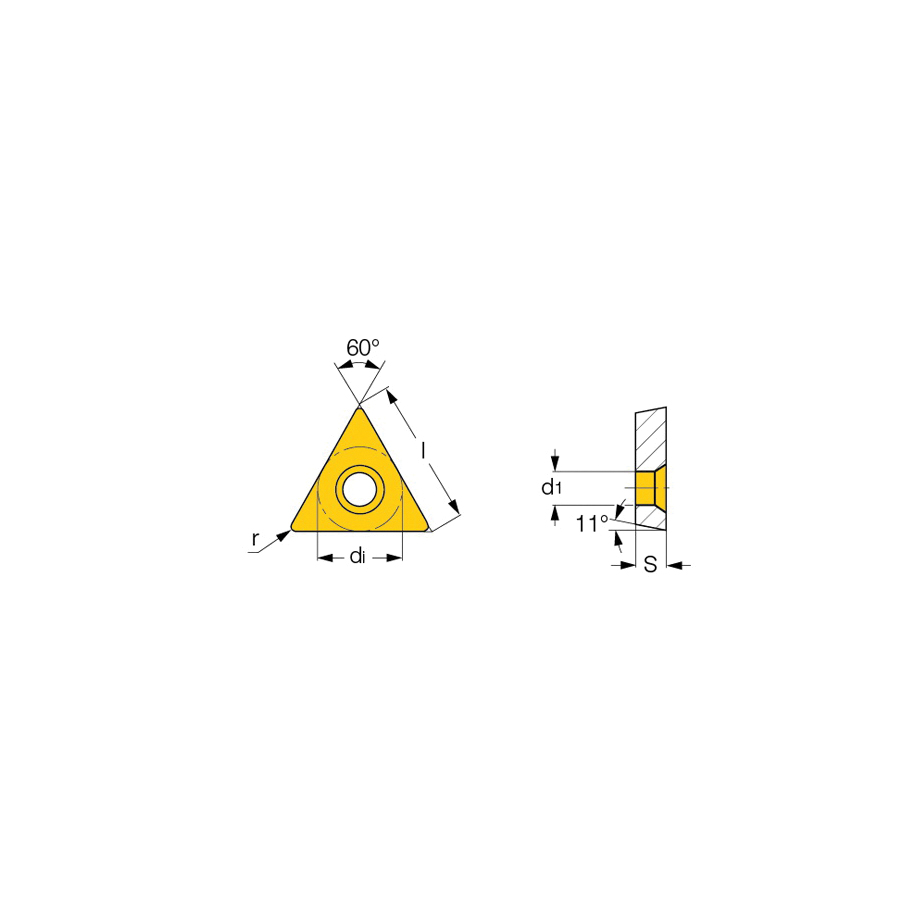

Iscar Turning Insert, Series: ISOTURN, TPMT Insert, 2-0 Insert, Triangular, 2 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 2.38 mm Thickness, 11 Seat, Positive Rake, 0.2 mm Corner Radius, 3 mm Hole Dia, Manufacturers Grade: IC807, ANSI Code: TPMT 2-0 IC807, ISO Code: TPMT 110202 IC807, 60 deg Included Angle, 11 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Features
- Positive chipformer, low cutting forces
- Used for internal turning and for finishing
- IC807 grade suitable for low to medium cutting speeds
- Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
- Chipbreaker on one side, with hole and countersink
Specifications
ANSI CodeTPMT 2-0 IC807
Corner Radius0.2 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Hole Diameter3 mm
Included Angle60 deg
Inscribed Circle6.35 mm
Insert Size2-0
Insert StyleTPMT
ISO CodeTPMT 110202 IC807
Manufacturers GradeIC807
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut2 mm
RakePositive
Relief Angle11 deg
Seat Size11
SeriesISOTURN
ShapeTriangular
Thickness2.38 mm
Additional Information
Country of OriginIL
