Iscar ISCAR 5566819

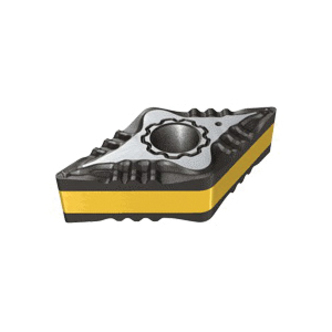

Iscar 5566819 ISOTURN Turning Insert, ANSI Code: DNMG 432-F3P, DNMG Insert, 432 Insert, Rhombic Shape, Positive Rake, Manufacturers Grade: IC8150

Invoice description: Dnmg 432-f3p Ic8150

UNSPSC: 23242105
Manufacturer PN: 5566819
$20.83 EA
Factory Order
Estimated to ship in 7 days
QTY:


Iscar Turning Insert, Series: ISOTURN, DNMG Insert, 432 Insert, Rhombic, 1/2 in Inscribed Circle, 0.187 in Thickness, Positive Rake, 0.031 in Corner Radius, Manufacturers Grade: IC8150, ANSI Code: DNMG 432-F3P, ISO Code: DNMG-F3P, 55 deg Included Angle

  • Features

  • Double sided 55 deg rhombic insert, used for semi-finishing and finishing applications
  • Low cutting forces due to very sharp edge and positive rake

Specifications

ApplicationISO Turning
ANSI CodeDNMG 432-F3P
Corner Radius0.031 in
Included Angle55 deg
Inscribed Circle1/2 in
Insert Size432
Insert StyleDNMG
ISO CodeDNMG-F3P
Manufacturers GradeIC8150
RakePositive
SeriesISOTURN
ShapeRhombic
Thickness0.187 in

Additional Information

Standards/ApprovalISO 13399
