Iscar ISCAR 5595493

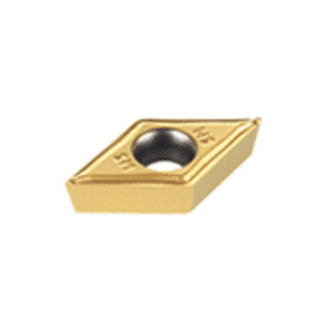

Iscar 5595493 1-Sided Turning Insert, ANSI Code: DCGT 3-0-SM IC907, DCGT Insert, Material Grade: H, K, M, N, P, S, 3-0 Insert, Rhombic Shape, 11 Seat, Positive Rake, Carbide, Manufacturers Grade: IC907
Invoice description:
Dcgt 3-0-sm Ic907
Factory Order

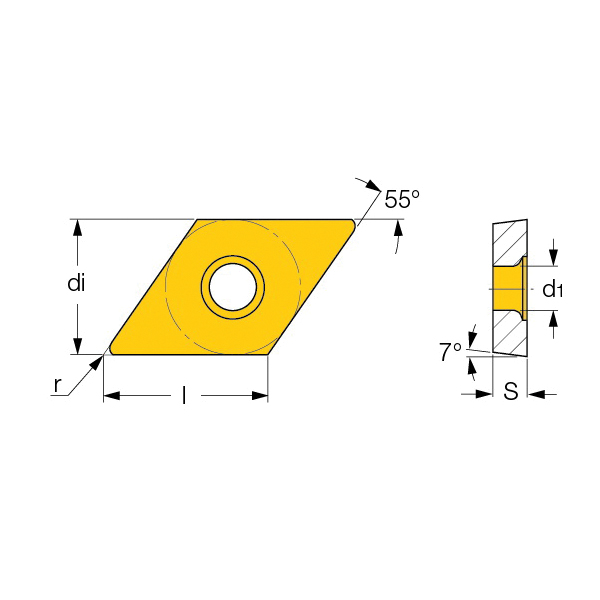

Iscar Turning Insert, 1-Sided, DCGT Insert, 3-0 Insert, Rhombic, 2 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 11 Seat, Positive Rake, SM Chipbreaker, 0.2 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: IC907, ANSI Code: DCGT 3-0-SM IC907, ISO Code: DCGT 11T302-SM IC907, 55 deg Included Angle, 7 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Positive flank
- Chip breaking in moderate feed range
- Positive rake, low cutting forces
- IC907 grade a tough sub-micron substrate, TiAlN PVD coated
- Suitable for low-to-medium cutting speeds
- Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeDCGT 3-0-SM IC907
ChipbreakerSM
Corner Radius0.2 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter4.4 mm
Included Angle55 deg
Inscribed Circle9.52 mm
Insert Size3-0
Insert StyleDCGT
ISO CodeDCGT 11T302-SM IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut2 mm
RakePositive
Relief Angle7 deg
Seat Size11
ShapeRhombic
Thickness3.97 mm
Type1-Sided
Additional Information
Country of OriginIL
