Iscar ISCAR 5596391

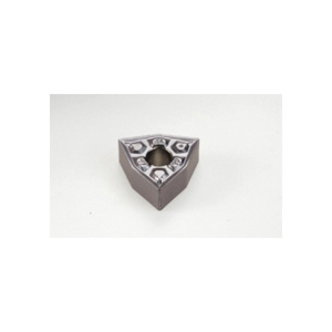

Iscar 5596391 ISOTURN 2-Sided Turning Insert, ANSI Code: WNMG 331-TF IC907, WNMG Insert, Material Grade: H, K, M, N, P, S, 331 Insert, Trigon Shape, 06 Seat, Positive Rake, Carbide, Manufacturers Grade: IC907
Invoice description:
Wnmg 331-tf Ic907
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, WNMG Insert, 331 Insert, Trigon, 3 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 06 Seat, Positive Rake, TF Chipbreaker, 0.4 mm Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: IC907, ANSI Code: WNMG 331-TF IC907, ISO Code: WNMG 060404-TF IC907, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Positive rake angle that varies along the edge to negative in order to prevent chipping
- Special design reduces cratering
- Chipbreaker on both sides with hole
Specifications
ANSI CodeWNMG 331-TF IC907
ChipbreakerTF
Corner Radius0.4 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter0.15 in
Included Angle80 deg
Inscribed Circle9.52 mm
Insert Size331
Insert StyleWNMG
ISO CodeWNMG 060404-TF IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut3 mm
RakePositive
Relief Angle0 deg
Seat Size06
SeriesISOTURN
ShapeTrigon
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
