Iscar ISCAR 5600417

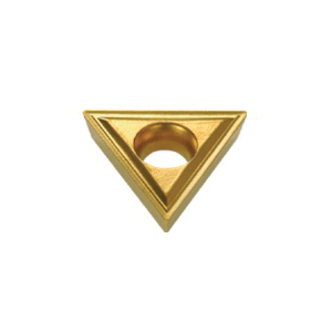

Iscar 5600417 ISOTURN Single Sided Milling Insert, ANSI Code: TPMT 322 IC635, TPMT Insert, 160308 Insert, Carbide, Manufacturers Grade: IC635, Triangular Shape, Material Grade: M, P
Invoice description:
Tpmt 322 Ic635
Factory Order

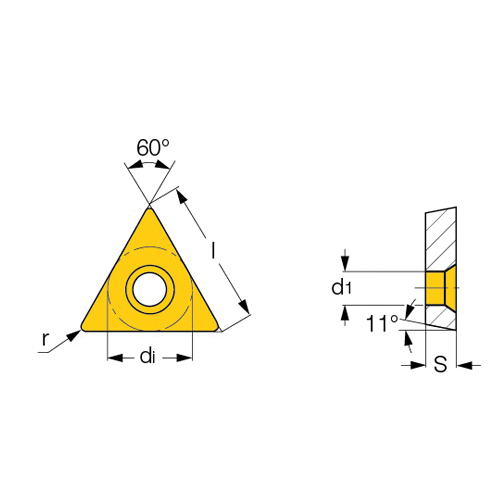

Iscar Milling Insert, Single Sided, Series: ISOTURN, TPMT Insert, 160308 Insert, Triangular, 9.52 mm Inscribed Circle, 3.18 mm Thickness, 16.5 mm Length, 0.8 mm Corner Radius, Positive Rake, 4.3 mm Hole Dia, Manufacturers Grade: IC635, ANSI Code: TPMT 322 IC635, ISO Code: TPMT 160308 IC635, Carbide, CVD-TiN+TiCN Coated, Material Grade: M, P, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex Material Application
Specifications
ApplicationChamfering and Bottom Deburring, Countersinking, Slanted Shoulder and Chamfer
ANSI CodeTPMT 322 IC635
Corner Radius0.8 mm
FinishCVD-TiN+TiCN Coated
Hole Diameter4.3 mm
Inscribed Circle9.52 mm
Insert Size160308
Insert StyleTPMT
ISO CodeTPMT 160308 IC635
Length16.5 mm
Manufacturers GradeIC635
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex
Material GradeM, P
RakePositive
SeriesISOTURN
ShapeTriangular
Thickness3.18 mm
TypeSingle Sided
